Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out the top of the upper quarter trim panel.
  2. Pull the trim panel (1) firmly and evenly in order to disengage the retainers from the upper quarter panel.
  3. Remove the trim panel (1) from the upper quarter panel.

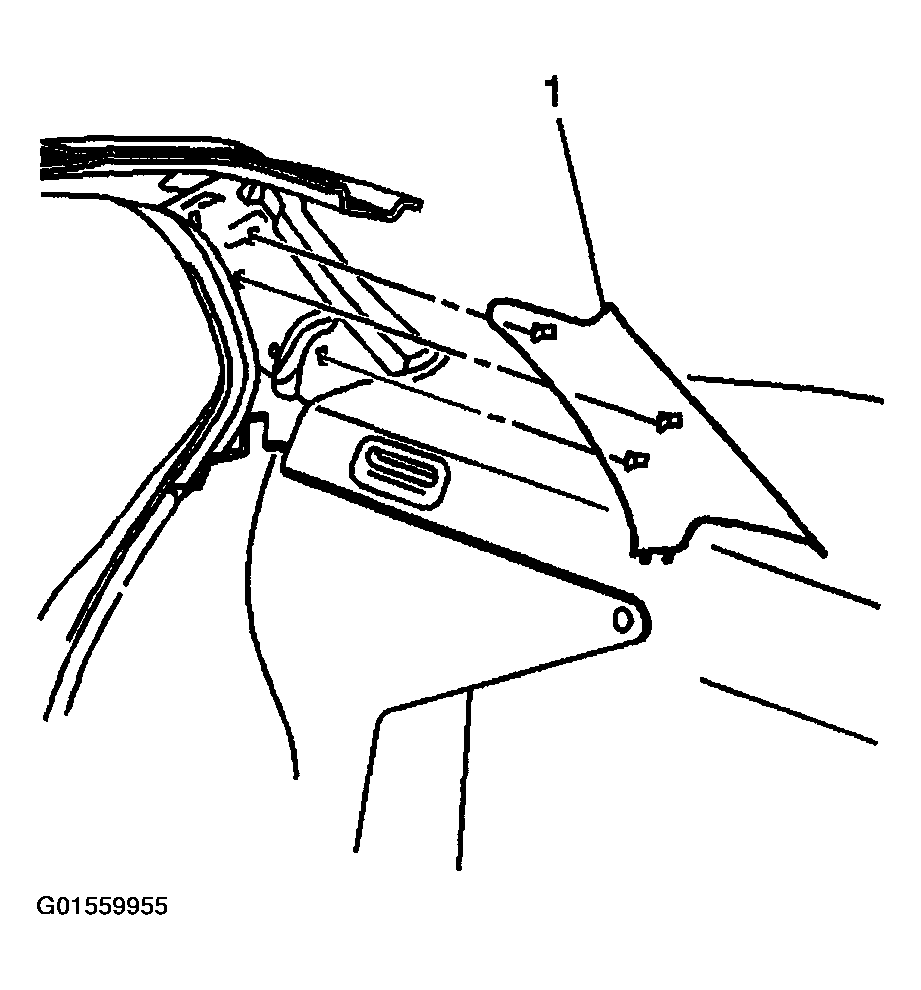

    Fig 1: Removing Trim Panel From Upper Quarter Panel
    G01559955Courtesy of GENERAL MOTORS CORP.
