Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lower locating tabs on the trim panel (1) behind the lower quarter trim panel.
  2. Align the trim panel retainers with the openings in the upper quarter panel.
  3. Press the trim panel (1) firmly and evenly in order to engage the retainers to the upper quarter panel.

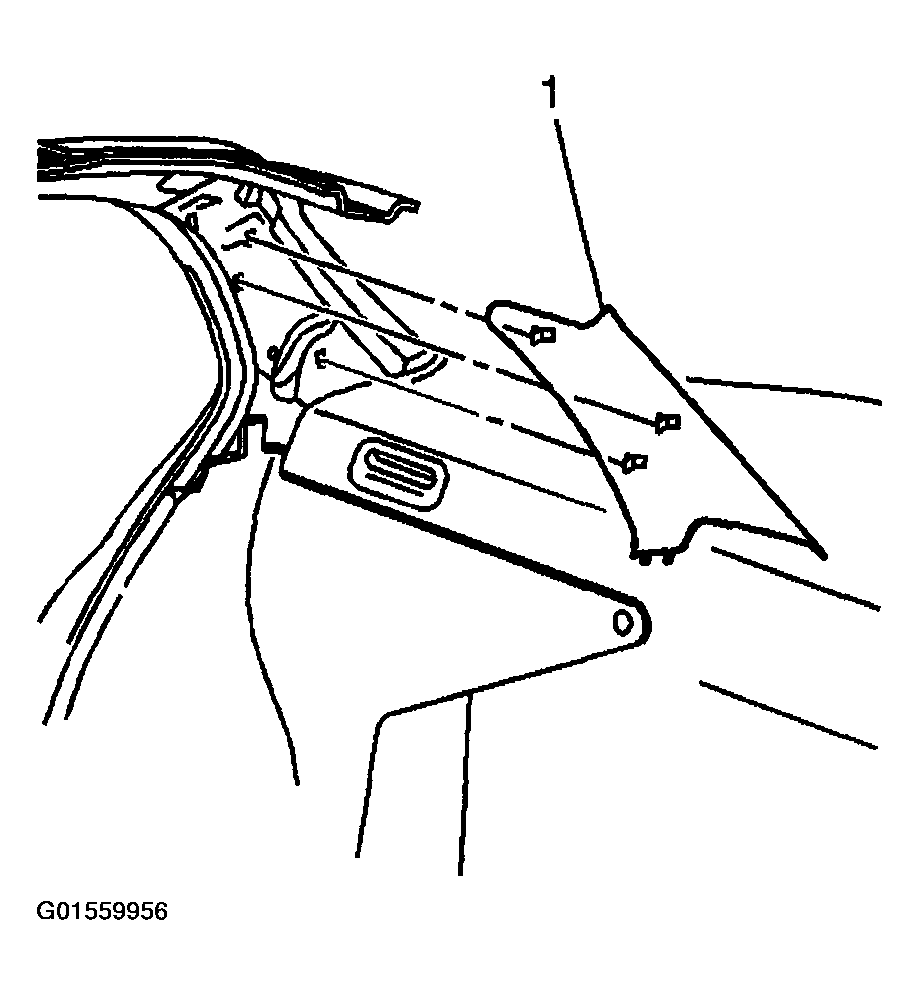

    Fig 1: Installing Trim Panel To Upper Quarter Panel
    G01559956Courtesy of GENERAL MOTORS CORP.
