Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  2. Remove the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER  .
  3. Fold down the rear seat back.
  4. Remove the push retainer (1) from the lower quarter trim panel (2).
  5. Pull the trim panel (2) firmly and evenly in order to disengage the retainers from the lower quarter panel.
  6. Remove the trim panel (2) from the lower quarter panel.

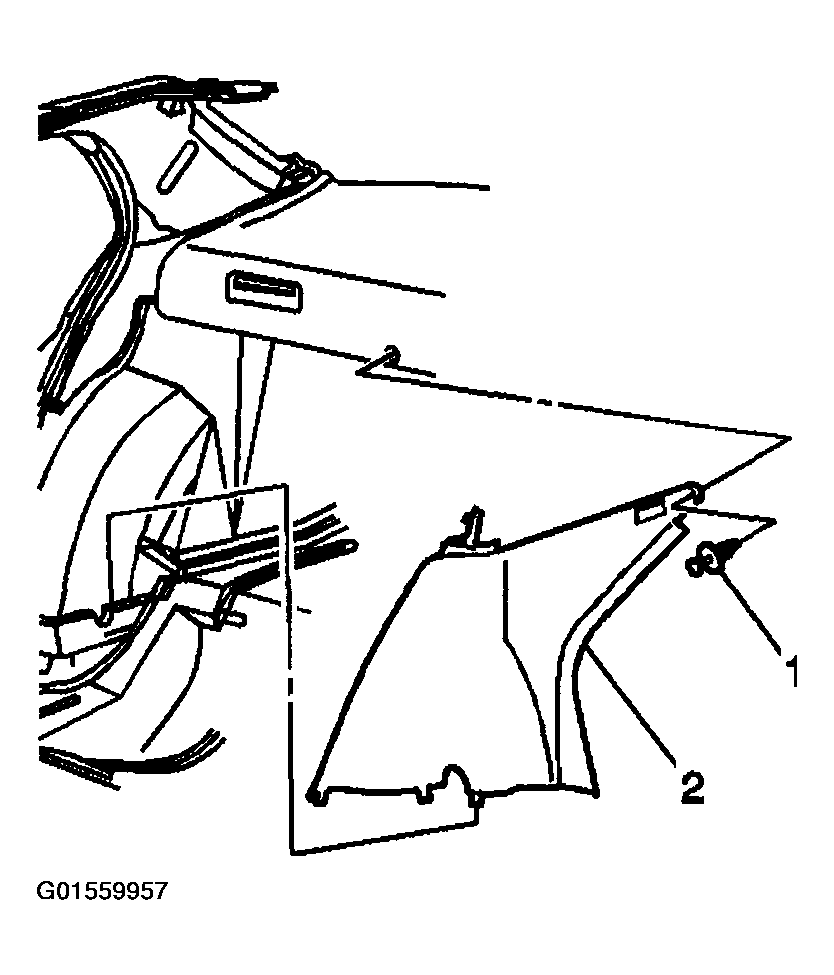

    Fig 1: Removing Push Retainer From Lower Quarter Trim Panel
    G01559957Courtesy of GENERAL MOTORS CORP.
