Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trim panel (2) to the lower quarter panel.
  2. Align the trim panel retainers with the openings in the lower quarter panel.
  3. Press the trim panel (2) firmly and evenly in order to engage the retainers to the lower quarter panel.
  4. Install the push retainer (1) to the trim panel (2).
  5. Return the rear seat back to its upright position.
  6. Install the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER  .
  7. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.

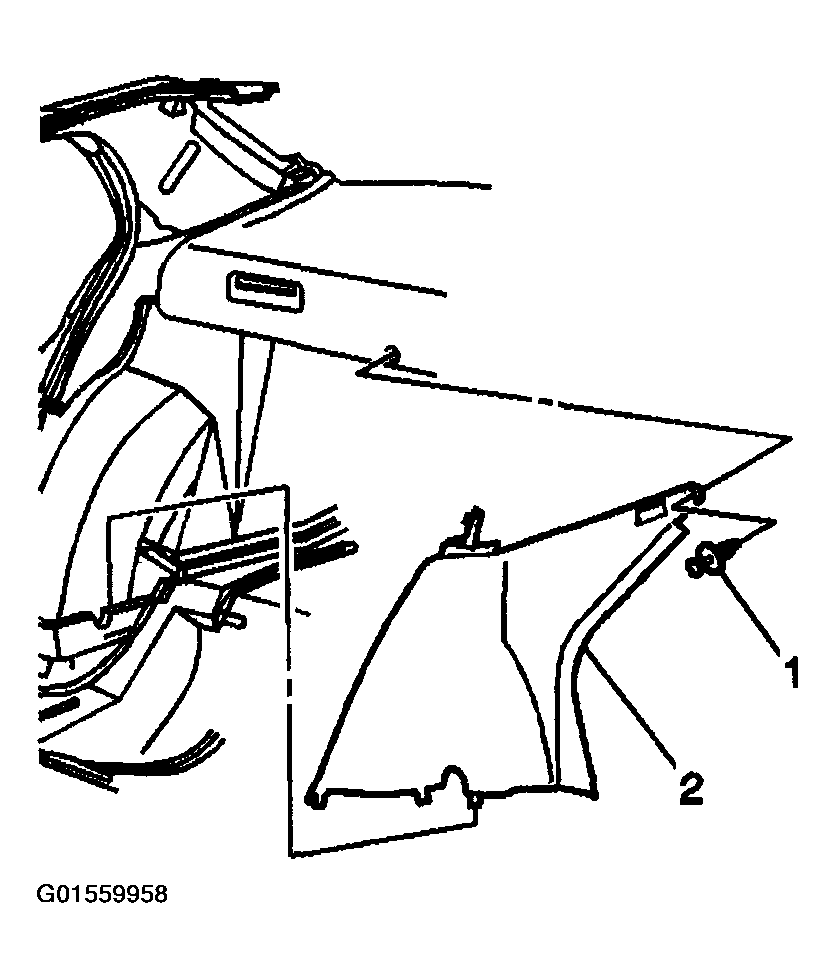

    Fig 1: Installing Push Retainer To Trim Panel
    G01559958Courtesy of GENERAL MOTORS CORP.
