Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunshade (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the sunshade screws (2).

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

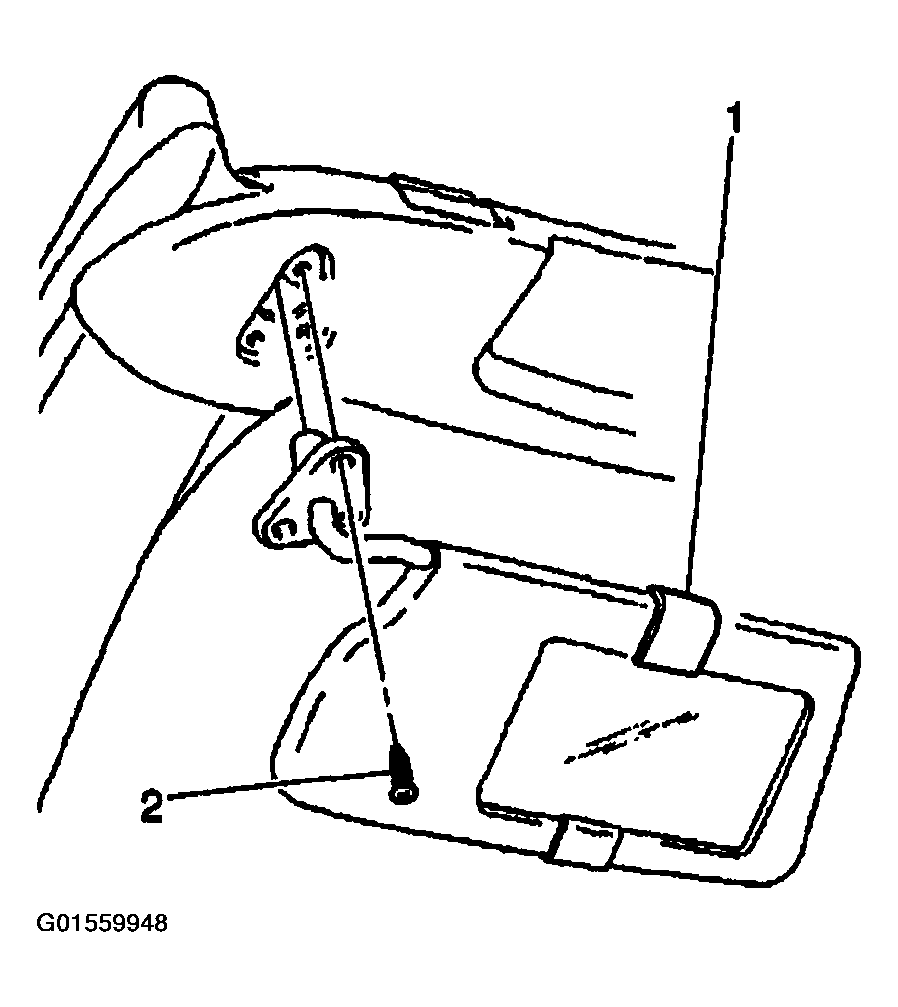

    Fig 1: Installing Sunshade
    G01559948Courtesy of GENERAL MOTORS CORP.
