Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use care when removing or installing the headliner. Excessive bending will damage the headliner.
  1. Install the dome lamp assembly (7) to the headliner (1), if required.
  2. Position the headliner (1) in the vehicle.
  3. Connect the coaxial cable connectors (2) to the digital radio antenna, if equipped.
  4. Position the heading (1) to the vehicle roof.
  5. Install the push-in retainers (5) to the headliner (1).
  6. If the vehicle is equipped with a GPS sensor, perform the following procedure:
    1. Connect the coaxial cable connector to the GPS sensor.
    2. Install the rosebud clips retaining the GPS sensor coaxial cable harness (9) to the upper rear quarter panel.

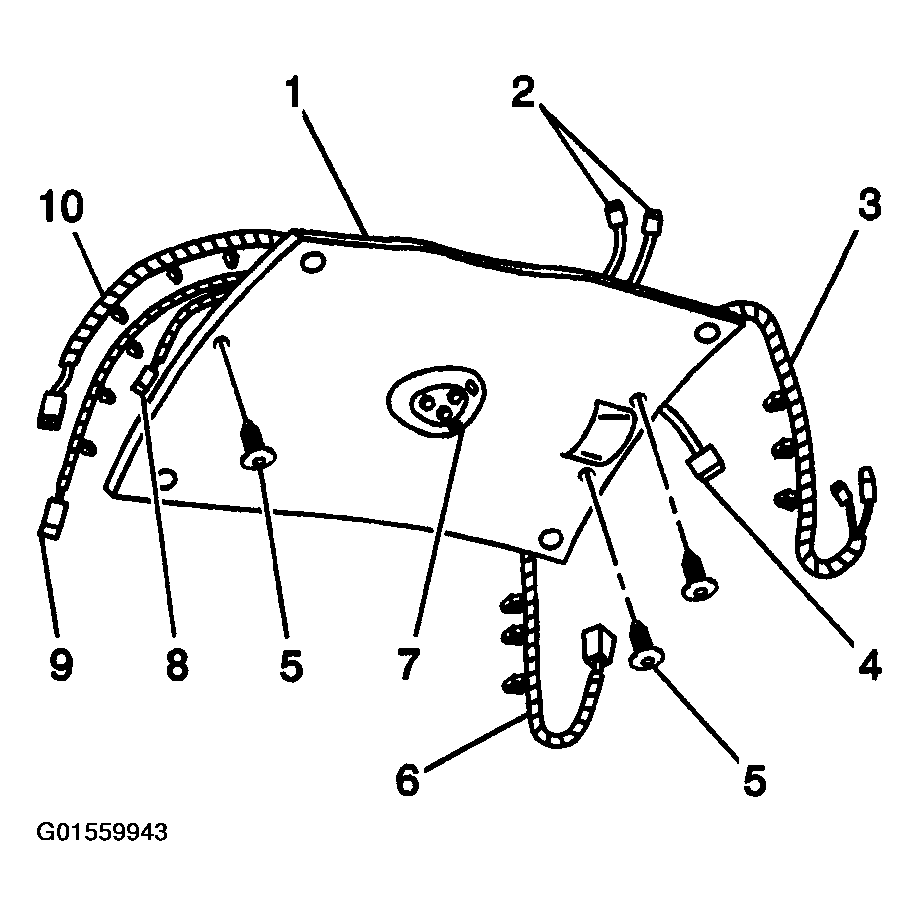

      Fig 1: Installing Dome Lamp Assembly To Headliner
      G01559943Courtesy of GENERAL MOTORS CORP.
  7. If the vehicle is equipped with a digital radio, perform the following procedure:
    1. Connect the coaxial cable connector to the digital radio receiver.
    2. Install the rosebud clips retaining the coaxial cable harness (10) to the upper rear quarter panel and the rear shelf.
  8. Connect the electrical connector (4) for the rear view mirror, if required.
  9. If equipped with OnStar perform the following procedure:
    1. Connect the coaxial cable connector (8) for the OnStar® cellular antenna.
    2. Route the OnStar® coaxial cable harness (3) through the opening along the windshield pillar.
    3. Install the rosebud clips retaining the OnStar® coaxial cable harness (3) to the windshield pillar.
    4. Connect the coaxial cable connectors to the OnStar® module.
  10. Route the dome lamp wire harness (6) through the opening in the windshield pillar.

    On the Cavalier install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT (CHEVROLET) or INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT (PONTIAC) in Instrument Panel, Gages, and Console.

  11. Install the rosebud clips retaining the dome lamp wire harness (6) to the windshield pillar.
  12. Connect the electrical connector (2) for the dome lamp wire harness (1) located on the I/P lower tie bar (4) by the BCM.
  13. Install the sunroof power switch, if equipped. Refer to SUNROOF SWITCH REPLACEMENT in Roof.
  14. Install the finish lace to the sunroof opening trim, if equipped. Refer to SUNROOF FINISHING LACE REPLACEMENT .
  15. On the coupe install the rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER  .
  16. On the sedan perform the following procedure:
    1. Install the upper rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER  .
    2. Install the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR  .
  17. Install the windshield upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  .
  18. Install the coat hooks. Refer to COAT HOOK REPLACEMENT  .
  19. Install the sunshades. Refer to SUNSHADE REPLACEMENT  .

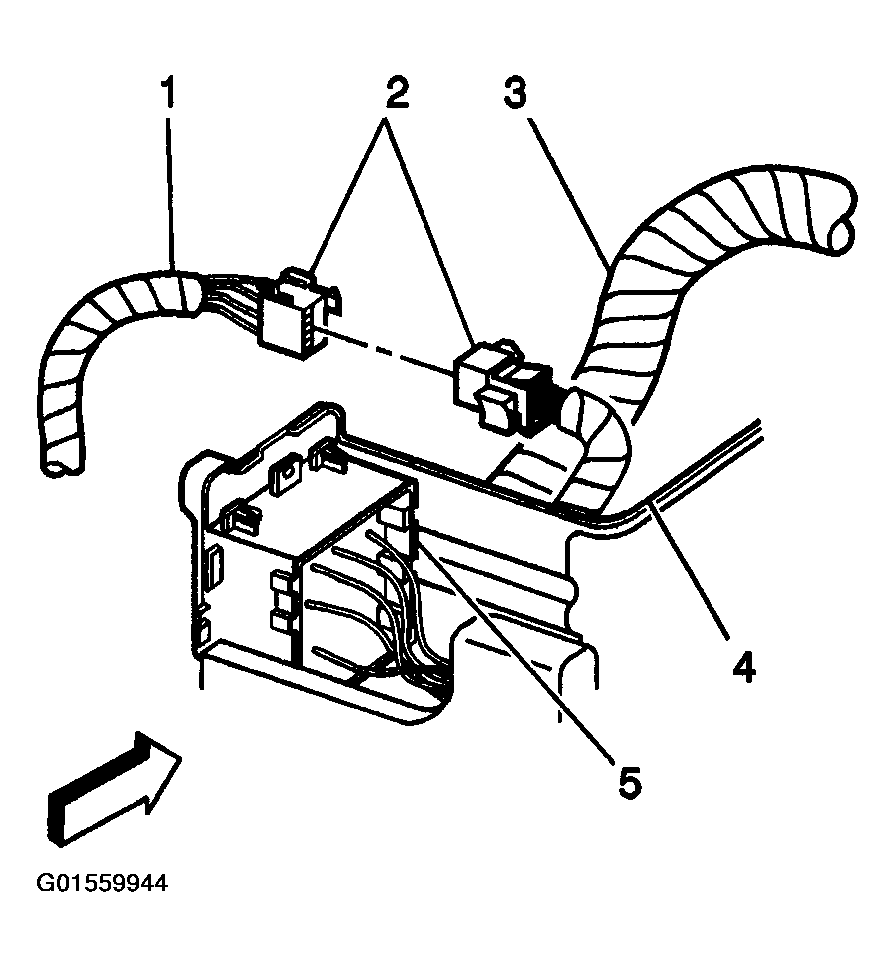

    Fig 2: Connecting Electrical Connector
    G01559944Courtesy of GENERAL MOTORS CORP.
