Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system, if equipped with Side Impact Air Bags (SIAB). Refer to DISABLING & ACTIVATING AIR BAG SYSTEM and DISABLING & ACTIVATING AIR BAG SYSTEM in Restraints.
  2. Remove the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER  .
  3. Remove the center pillar upper trim panel. TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR  .
  4. Pull up on the carpet retainer (1) to disengage the fasteners.
  5. Remove the carpet retainer (1) from the vehicle.

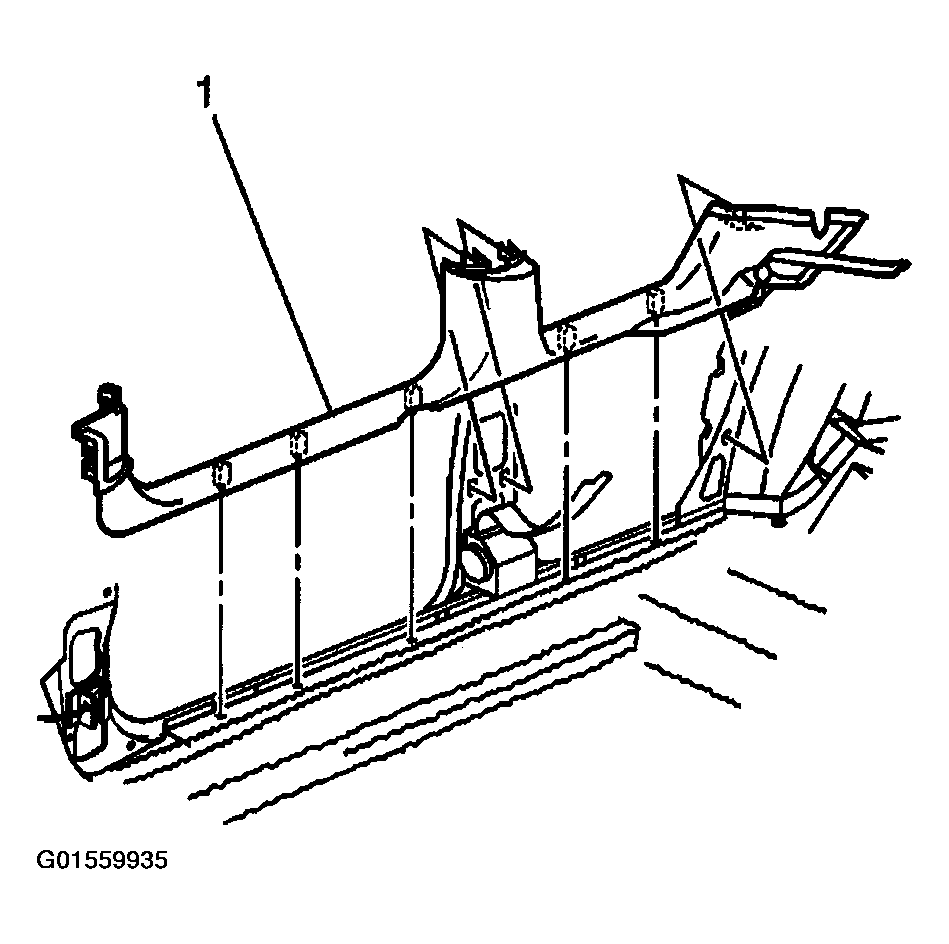

    Fig 1: Removing Carpet Retainer (Sedan)
    G01559935Courtesy of GENERAL MOTORS CORP.
