Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the carpet retainer (1) in the vehicle.
  2. Press down on the carpet retainer (1) until fasteners are fully engaged.
  3. Install the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR  .
  4. Install the rear quarter trim lower panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER  .
  5. Enable the SIR system, if equipped with Side Impact Air Bags (SIAB). Refer to DISABLING & ACTIVATING AIR BAG SYSTEM , and DISABLING & ACTIVATING AIR BAG SYSTEM in Restraints.

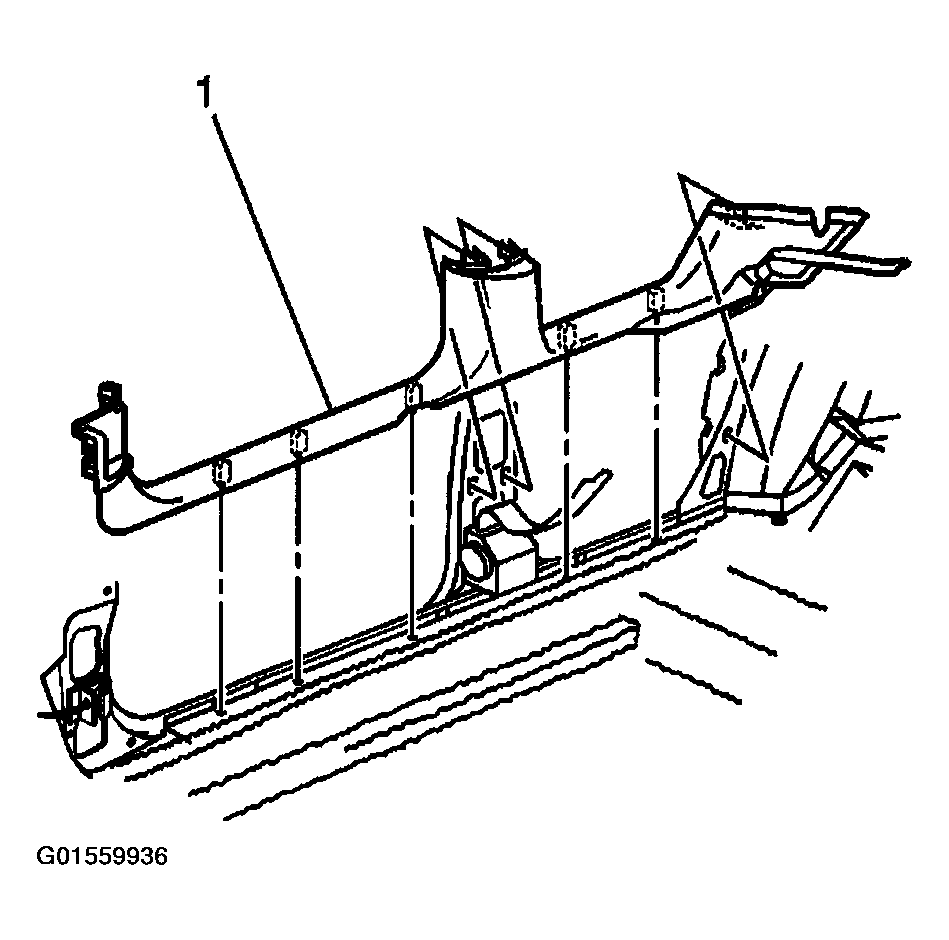

    Fig 1: Installing Carpet Retainer
    G01559936Courtesy of GENERAL MOTORS CORP.
