Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the retainer (1) into the vehicle.
  2. Press down on the retainer (1) until fasteners are fully engaged.
  3. Align the tab at the hood latch release handle. Press until fully engaged.

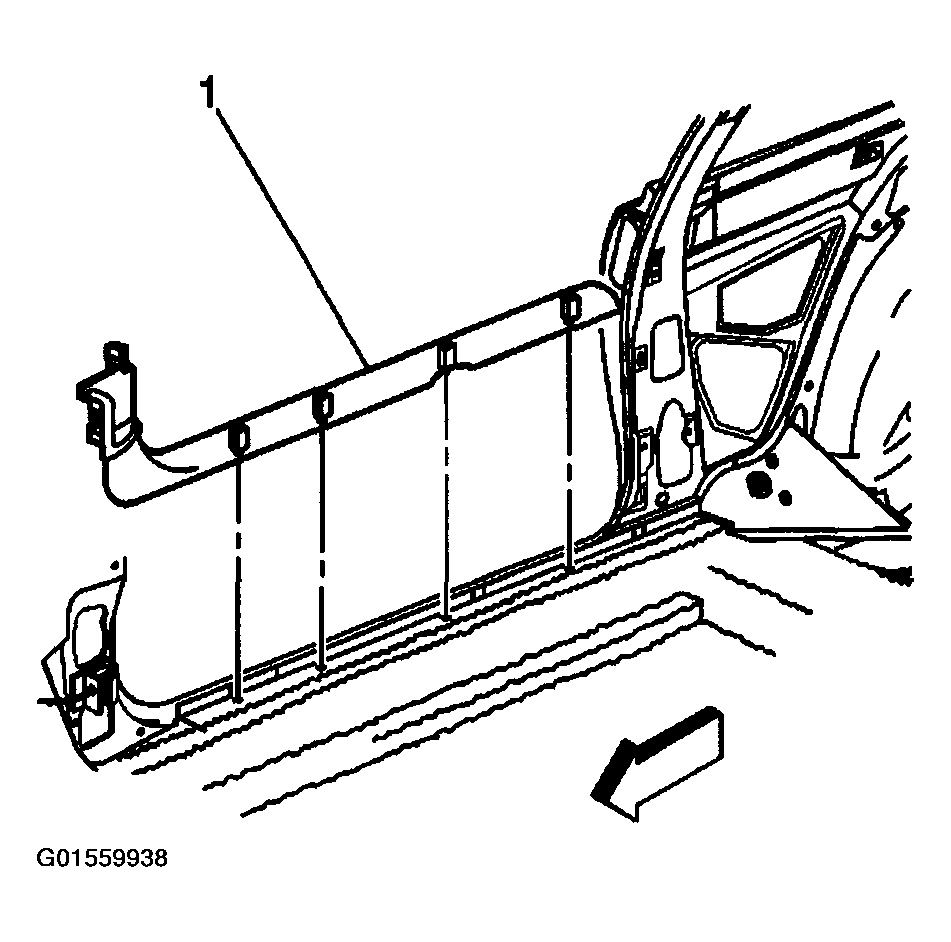

    Fig 1: Installing Carpet Retainer (Coupe)
    G01559938Courtesy of GENERAL MOTORS CORP.
