Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling Zones. Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs.
  1. Disable the SIR system, if equipped with Side Impact Air Bag (SIAB). Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Position the front bucket seat forward or rearward in order to gain access to the seat adjuster nuts (3).
  3. Remove the seat adjuster stud covers (2) and seat adjuster nuts (3).
  4. Disconnect the wire harness for the SIAB, if equipped.
  5. Remove the front bucket seat (1) from the vehicle.

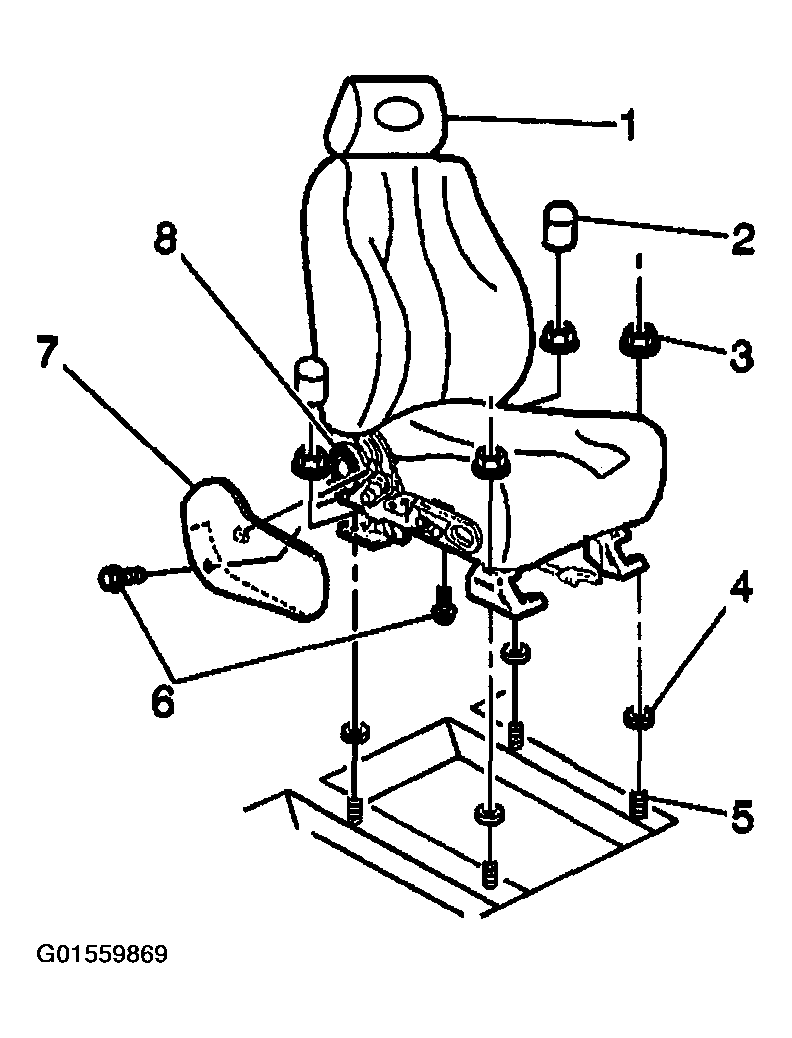

    Fig 1: Removing Seat Adjuster Stud Covers And Seat Adjuster Nuts
    G01559869Courtesy of GENERAL MOTORS CORP.
