Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool (1) in order to press the lower rear seat cushion retainer rearward.
    Fig 1: Inserting Flat-Bladed Tool In Lower Rear Seat Cushion Retainer Rearward
    G01559917Courtesy of GENERAL MOTORS CORP.

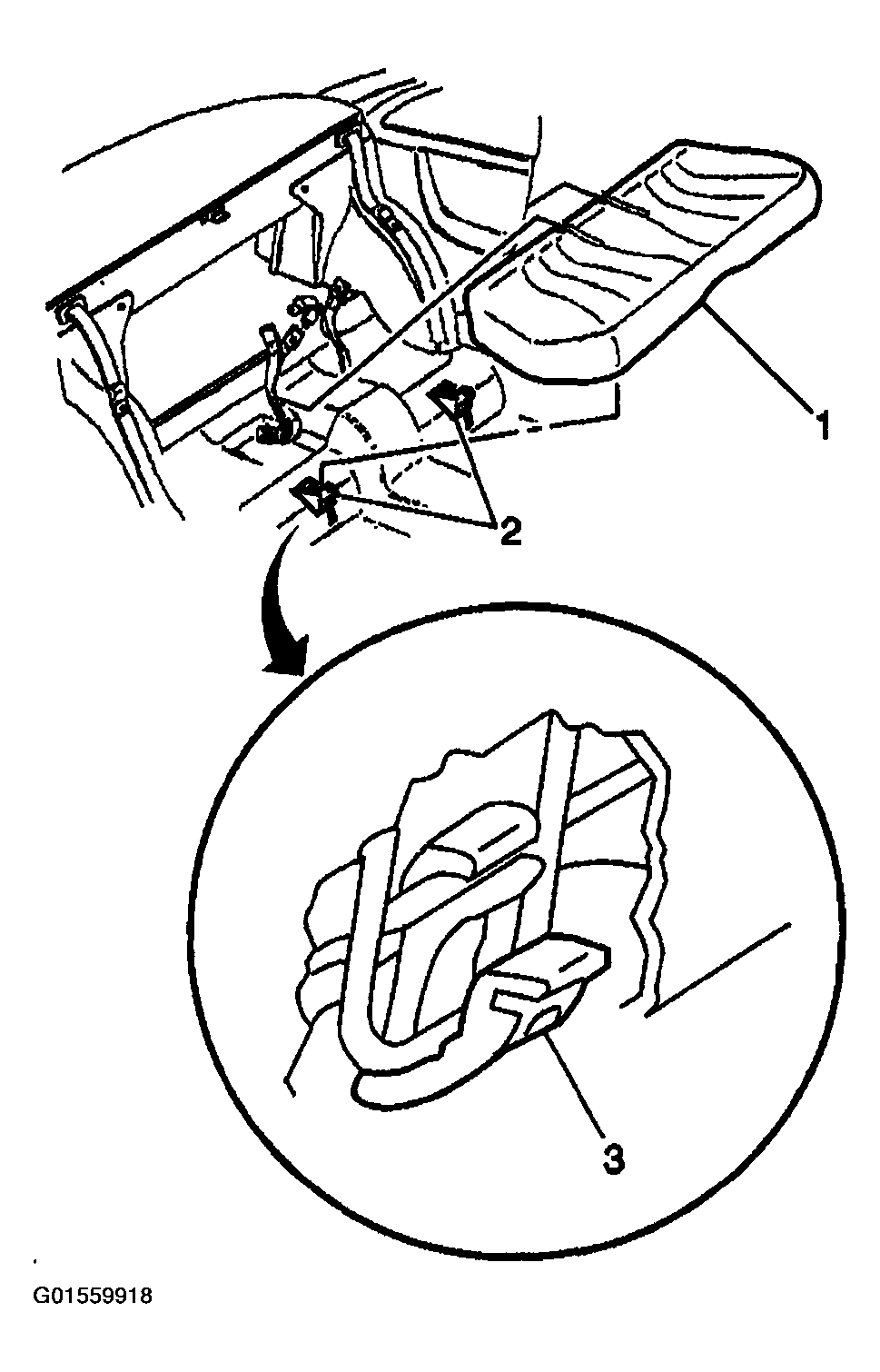

  2. Remove the rear seat cushion (1) lifting upward and out.
    Fig 2: Removing Rear Seat Cushion
    G01559918Courtesy of GENERAL MOTORS CORP.
