Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the lower rear seat cushion (1) over the retainer brackets (2).
  2. Install the rear seat cushion pressing downward and rearward on the lower rear seat cushion (1) in order to latch the retainer (3) to the retainer bracket.
  3. Inspect the rear seat cushion for proper installation by pulling up on the rear seat cushion.

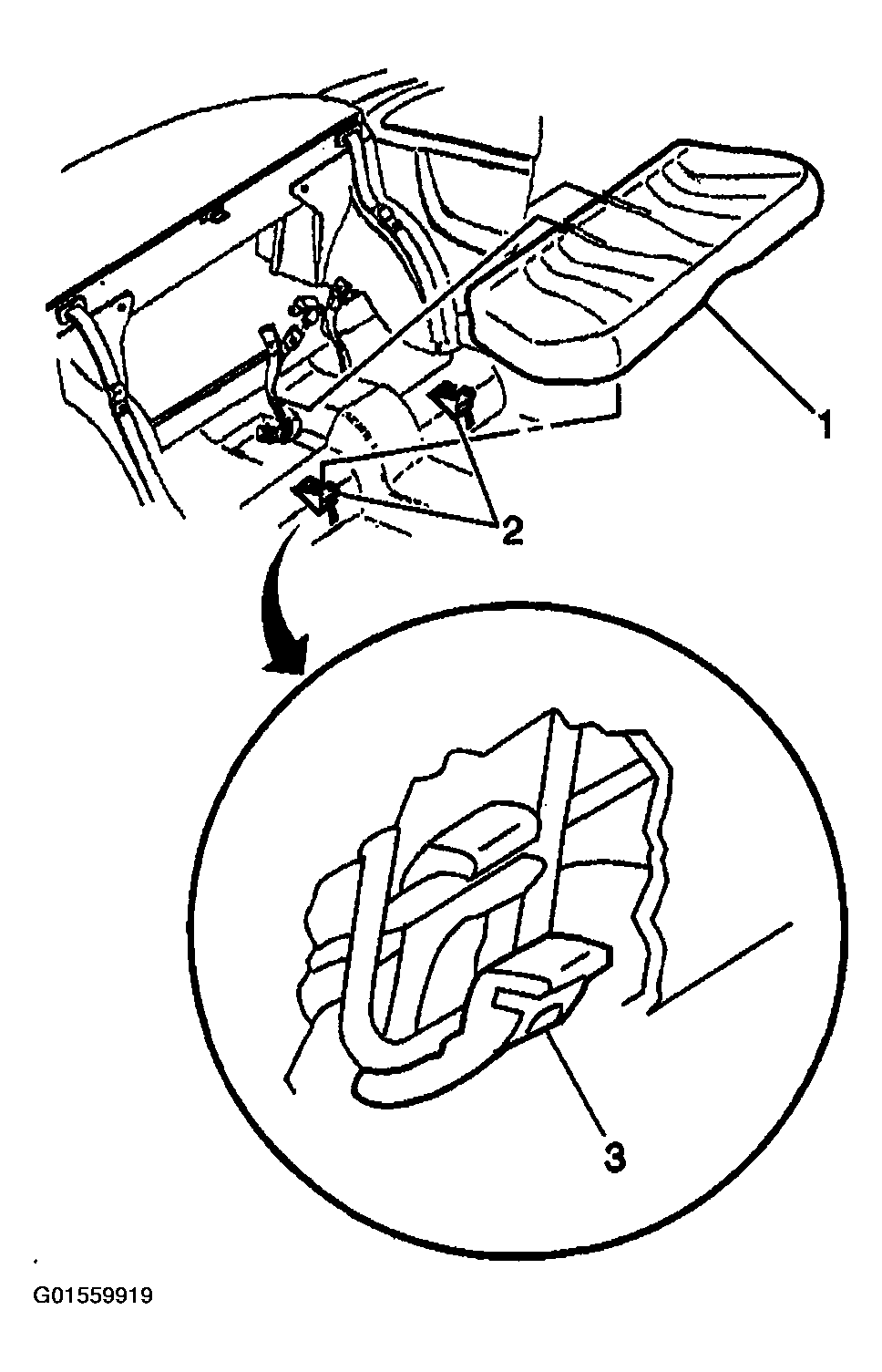

    Fig 1: Installing Rear Seat Cushion
    G01559919Courtesy of GENERAL MOTORS CORP.
