Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back (1) to the seat cushion (5).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat back pivot bolt (3).

    Tighten

    Tighten the bolt to 20 N.m (15 lb ft).

  3. Install the seat recliner bolts (6).

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  4. Fasten the wire harness for the SIAB to the cushion frame, if equipped.
  5. Fasten the lumbar actuator cable to the cushion frame, if equipped.
  6. Install the lumbar actuator to the cushion frame, if equipped. Refer to LUMBAR REPLACEMENT - FRONT SEAT (PONTIAC)  .
  7. Align the lumbar knob to the splines on the actuator, if equipped.

    Press onto the actuator until fully engaged.

  8. Install the seat cushion outer trim panel to the recliner.

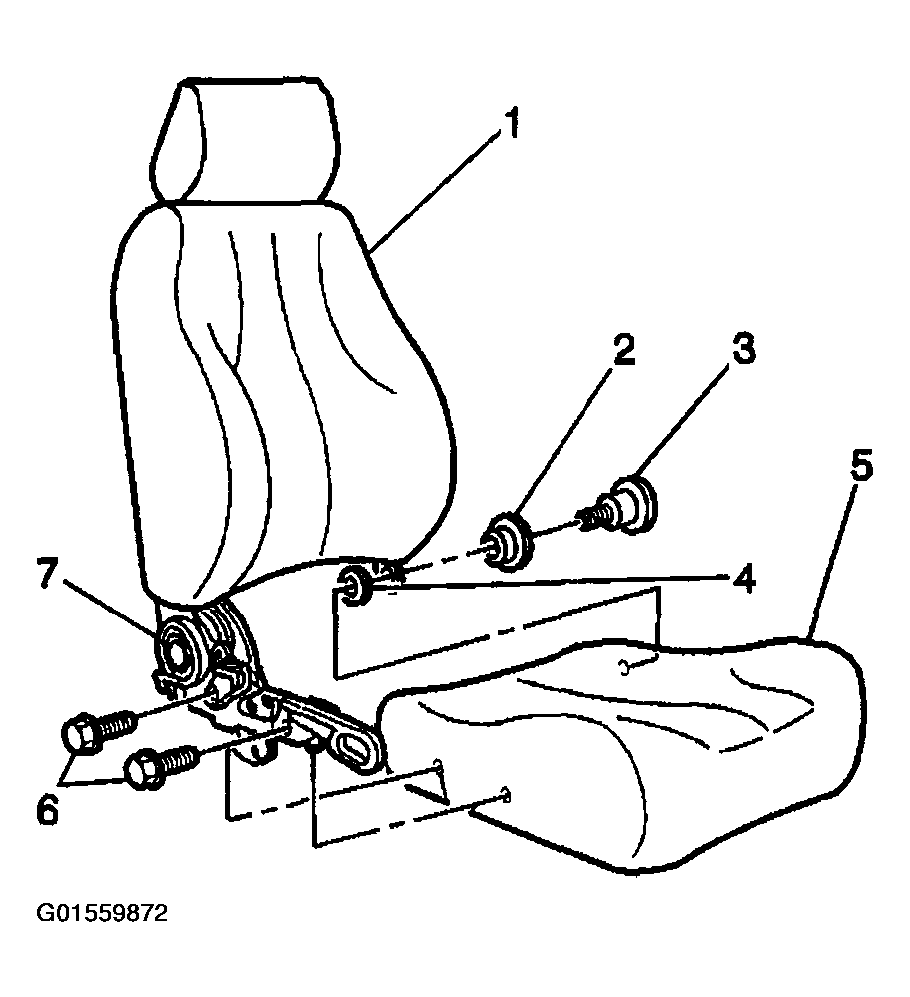

    Fig 1: Installing Seat Back To Seat Cushion
    G01559872Courtesy of GENERAL MOTORS CORP.
  9. Install the seat cushion outer trim panel screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb.in).

  10. Install the bucket seat. Refer to SEAT REPLACEMENT  .
  11. Enable the SIR system, if equipped with side impact inflatable restraints. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM or DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
