Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat bucket cushion outer trim panel to the front seat recliner mechanism.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the front bucket seat cushion outer trim panel.

Tighten

Tighten the screws to 1.9 N.m (17 lb.in).

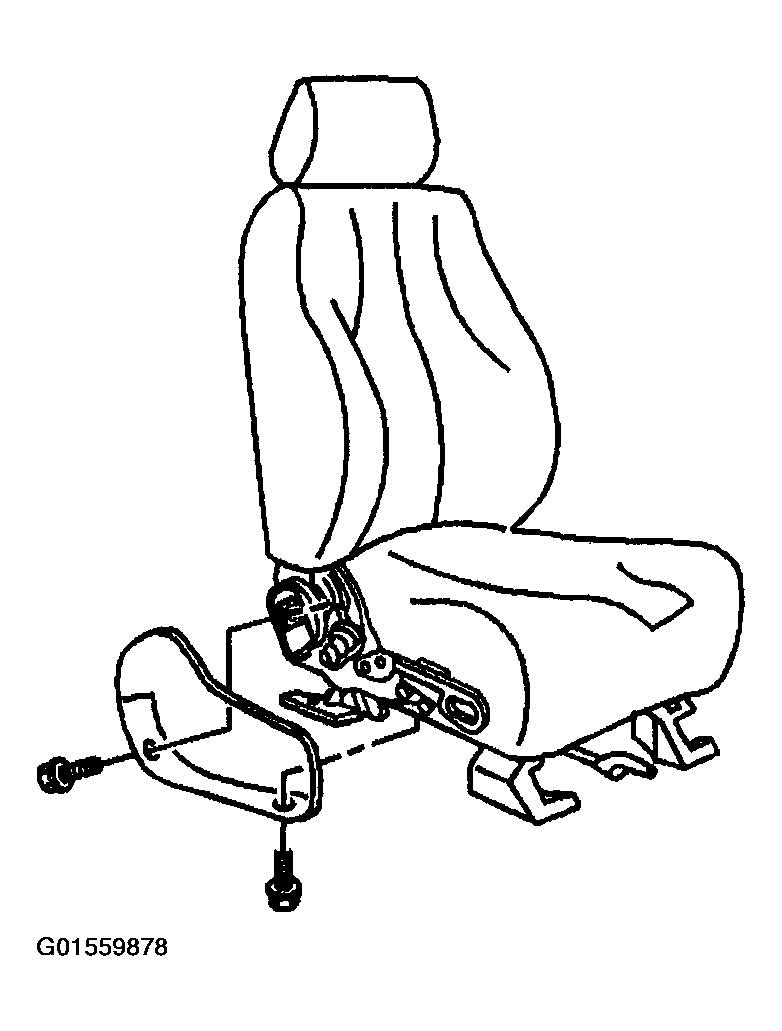

Fig 1: Installing Front Seat Cushion Outer Trim Panel
G01559878Courtesy of GENERAL MOTORS CORP.
