Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat pad and cover (1) to the front seat cushion frame (3).
  2. Connect the front seat pad and cover J-hook retainers (2) to the front seat cushion frame (3).
  3. Install the front bucket seat back to the front seat cushion. Refer to SEAT BACK REPLACEMENT - FRONT  .
  4. Install the front bucket seat. Refer to SEAT REPLACEMENT  .
  5. Enable the SIR system, if equipped with SIAB. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM , or DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

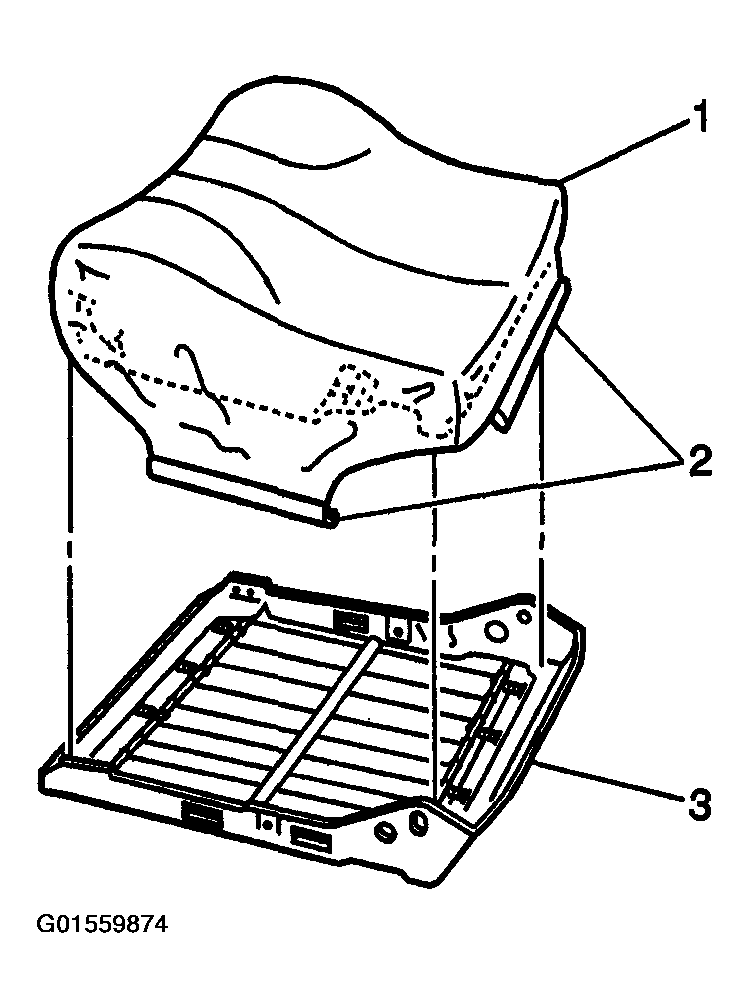

    Fig 1: Installing Front Seat Pad And Cover To Front Seat Cushion Frame
    G01559874Courtesy of GENERAL MOTORS CORP.
