Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat back into the vehicle.

    Left side shown.

  2. Align the opening on the seat back bottom to the center pivot pin (1) on the latch assembly.
  3. Slide the outboard side of the seat back (2) towards the outside of the vehicle. This will install the seat back (1) to the center pivot pin on the latch assembly.
    Fig 1: Installing Seat Back To Center Pivot Pin
    G01559927Courtesy of GENERAL MOTORS CORP.
  4. Align the shoulder bolt (3) to the retainer (2) on the latch assembly (4).
  5. Push the down on the seat back (1). This will engage the shoulder bolt (3) to the retainer (2) on the latch assembly (4).
  6. Return the seat back (1) to the original position.
  7. Close the rear compartment lid.

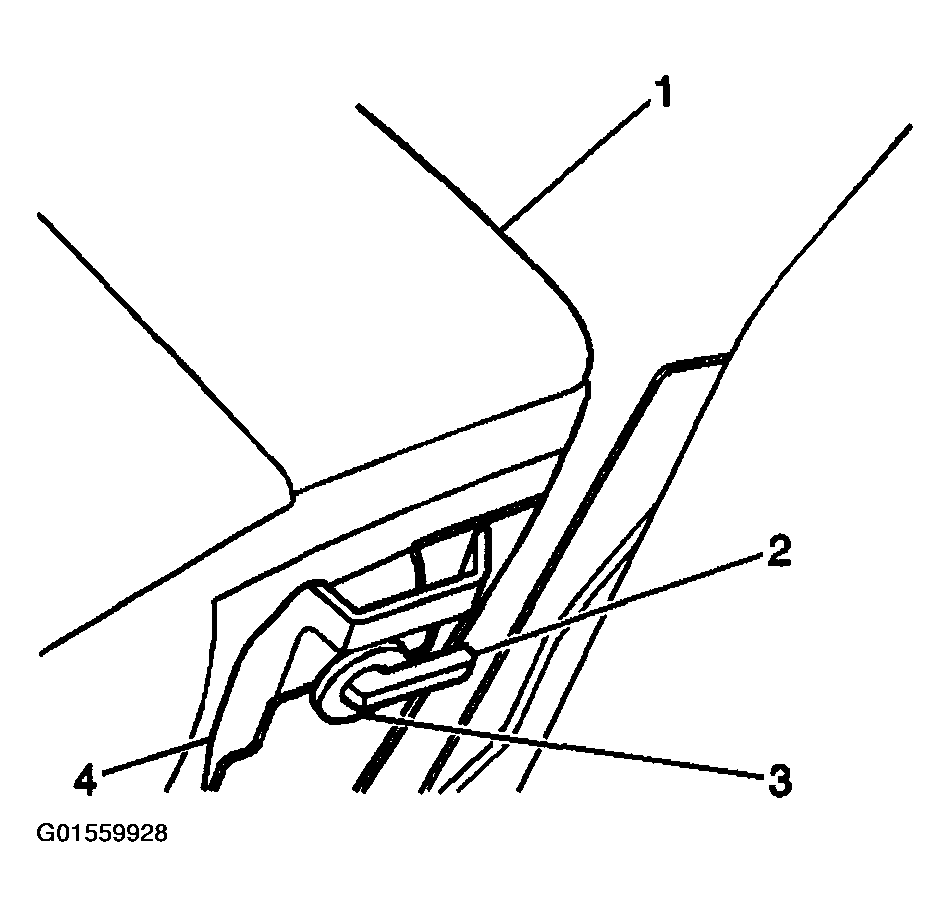

    Fig 2: Aligning Shoulder Bolt To Retainer On Latch Assembly
    G01559928Courtesy of GENERAL MOTORS CORP.
