Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. With a small flat-bladed tool release the retaining tabs for the seat back release handles.

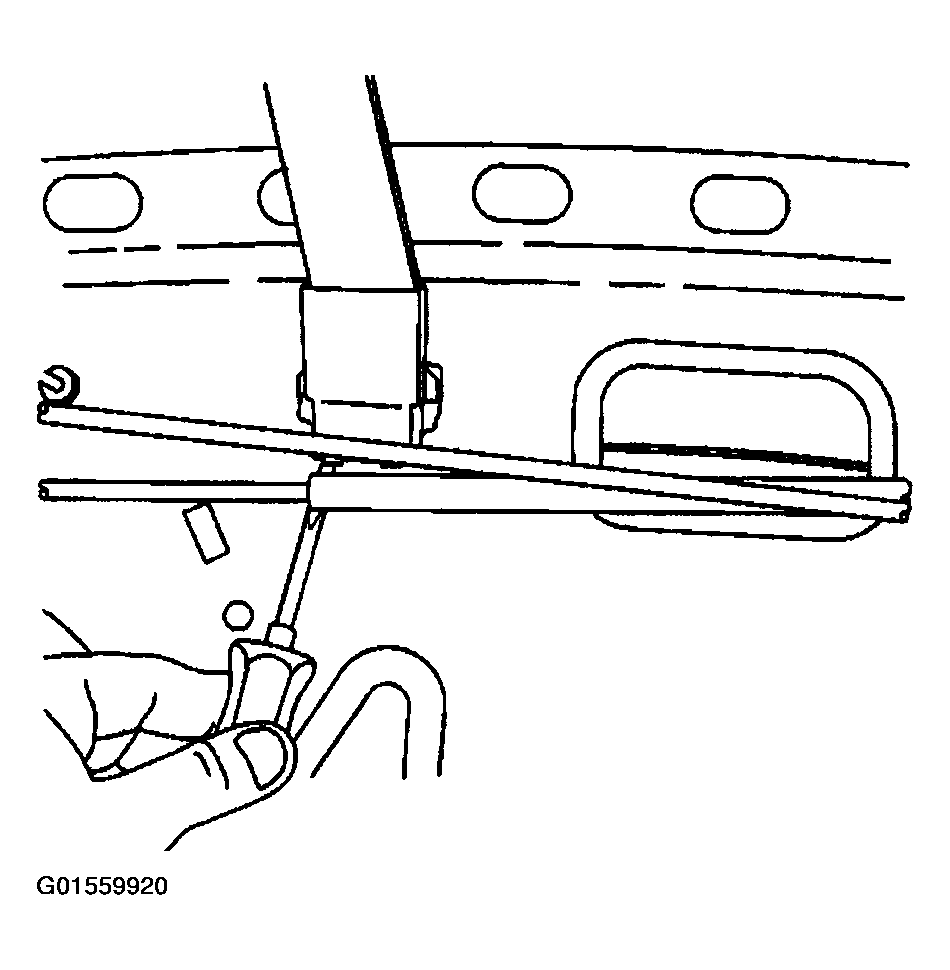

    Fig 1: Removing Retaining Tabs With Flat-Bladed Tool
    G01559920Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  4. Remove the GSP sensor from the rear shelf, if equipped. Refer to CELLULAR COMMUNICATION SYSTEM .
  5. Remove the seat back release handles from the rear package shelf.

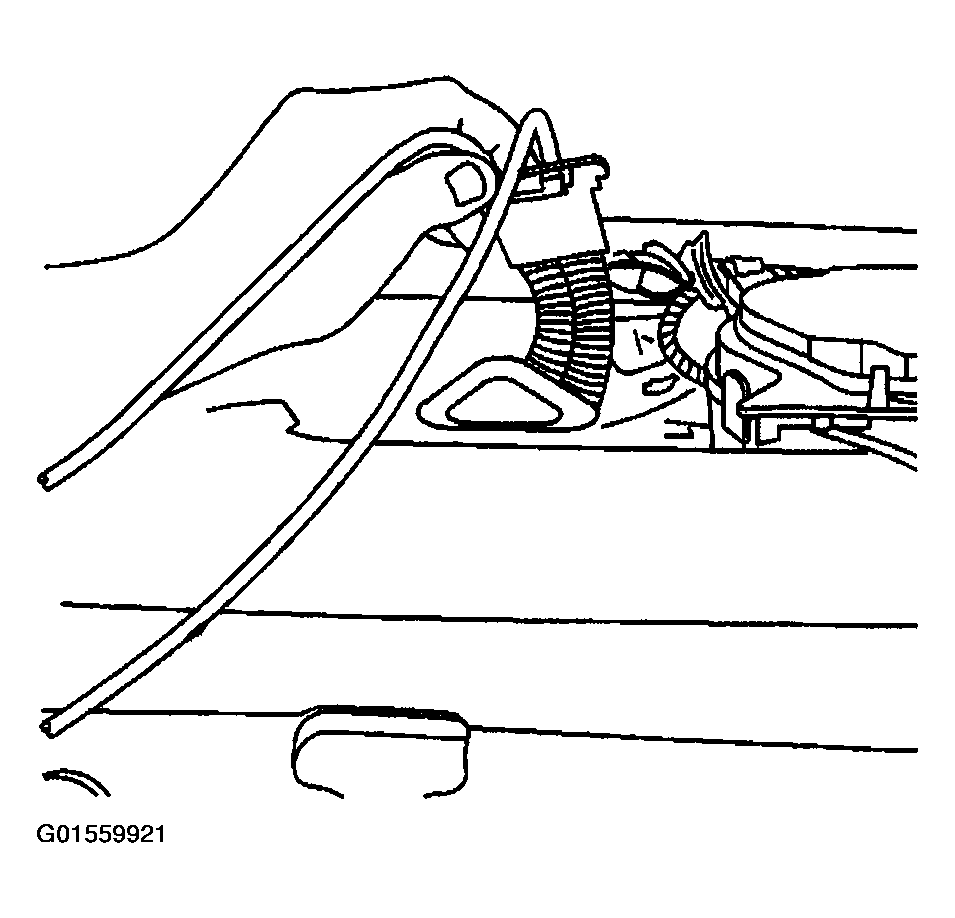

    Fig 2: Removing GSP Sensor From Rear Shelf
    G01559921Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat back latch bolts from the latch.
  7. Remove the seat back latch from the rear package shelf.
    Fig 3: Removing Seat Back Latch
    G01559922Courtesy of GENERAL MOTORS CORP.
