Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back latch to the rear package self.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat back latch bolts to the latch.

    Tighten

    Tighten the bolts to 10 N.m (89 lb.in).

    Fig 1: Installing Seat Back Latch
    G01559923Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back release handles to the rear package shelf.

    Press the seat back release handles into the rear package shelf until fully seated.

  4. Install the GSP sensor to the rear shelf, if equipped. Refer to CELLULAR COMMUNICATION SYSTEM .
  5. Install the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  6. Close the rear compartment lid.
  7. Check the seat back latch for proper operations.

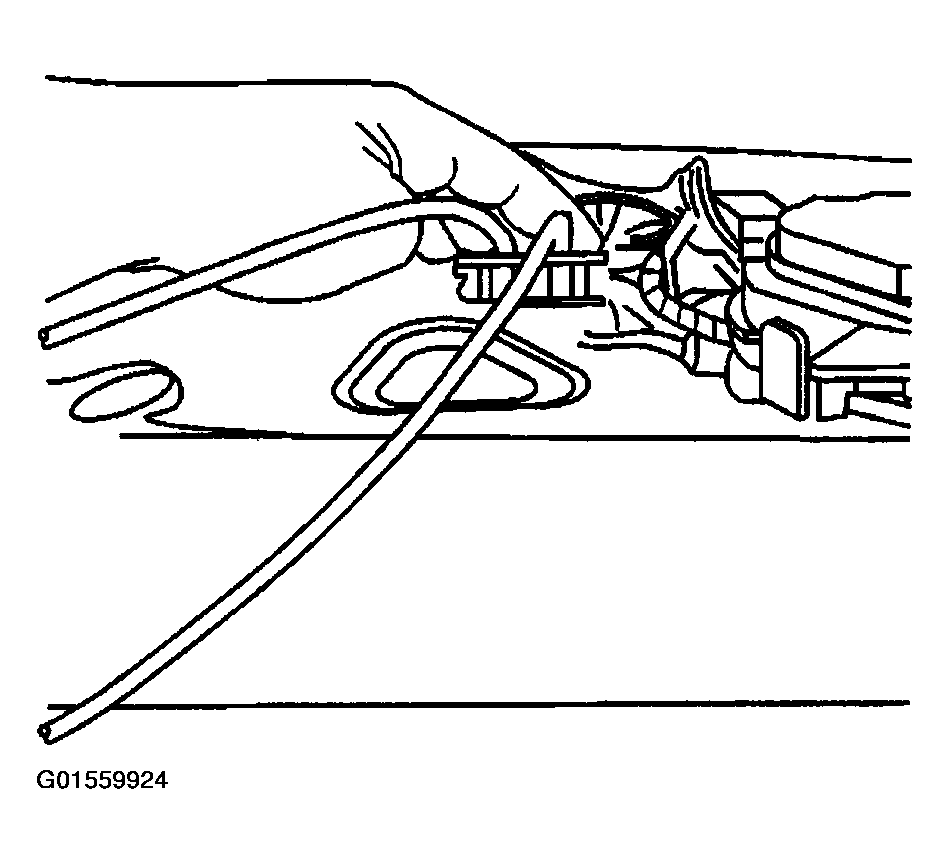

    Fig 2: Installing GSP Sensor To Rear Shelf
    G01559924Courtesy of GENERAL MOTORS CORP.
