Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recliner to the seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the recliner bolts (1, 2)

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Install the seat back pad and cover to a desired appearance.
  4. Fasten the J-hook retainer located next to the SIAB module, if equipped.
  5. Fasten the J-hook retainer located at the bottom of the seat back cover.
  6. Install the outer trim panel on the seat cushion. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT  .
  7. Install the bucket seat. Refer to SEAT REPLACEMENT  .
  8. Reposition the seat back to the original position.
  9. Check the seat back recliner for proper operation.
  10. Enable the SIR system, if equipped with SIAB. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM or to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

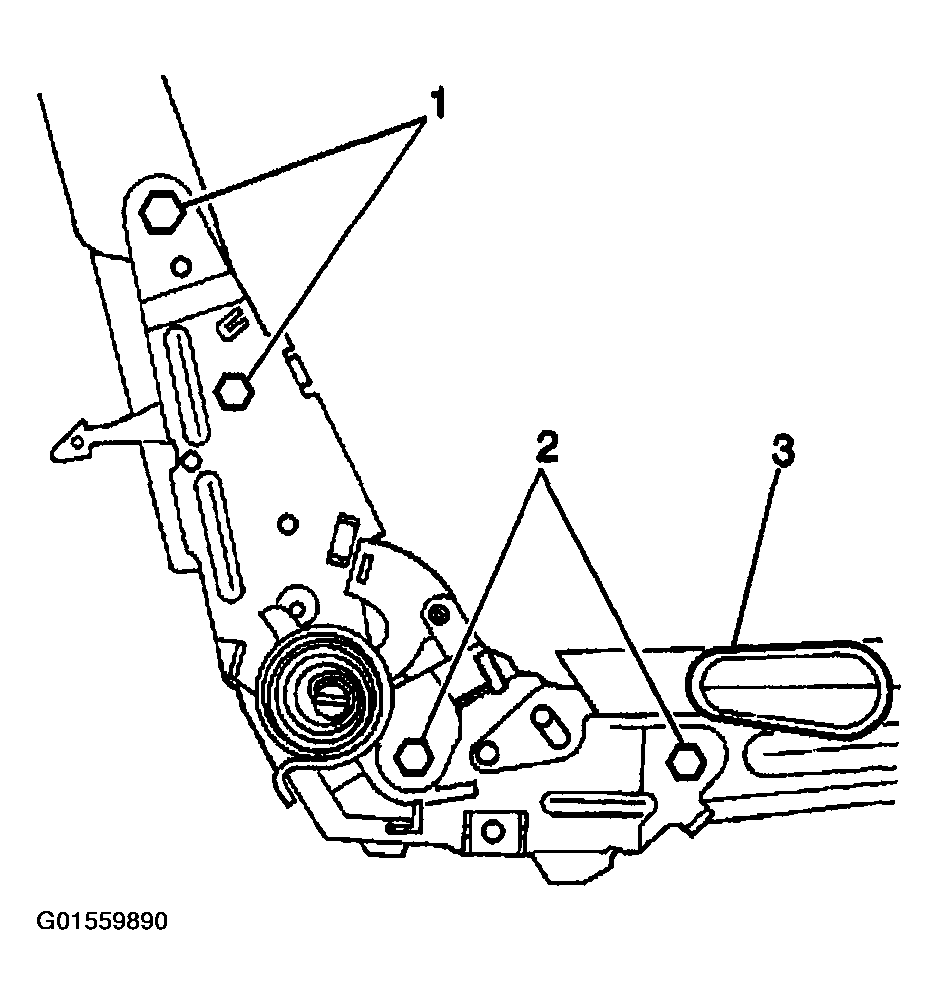

    Fig 1: Installing Recliner Bolts
    G01559890Courtesy of GENERAL MOTORS CORP.
