Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING  .
  2. Adjust the seat back cover and the pad in order to access the latch striker. Refer to SEAT BACK COVER AND PAD - REAR SPLIT FOLDING  .
  3. Drill out the rivet (2) for the latch striker (3).
  4. Remove the latch striker (3) from the seat back frame (1).

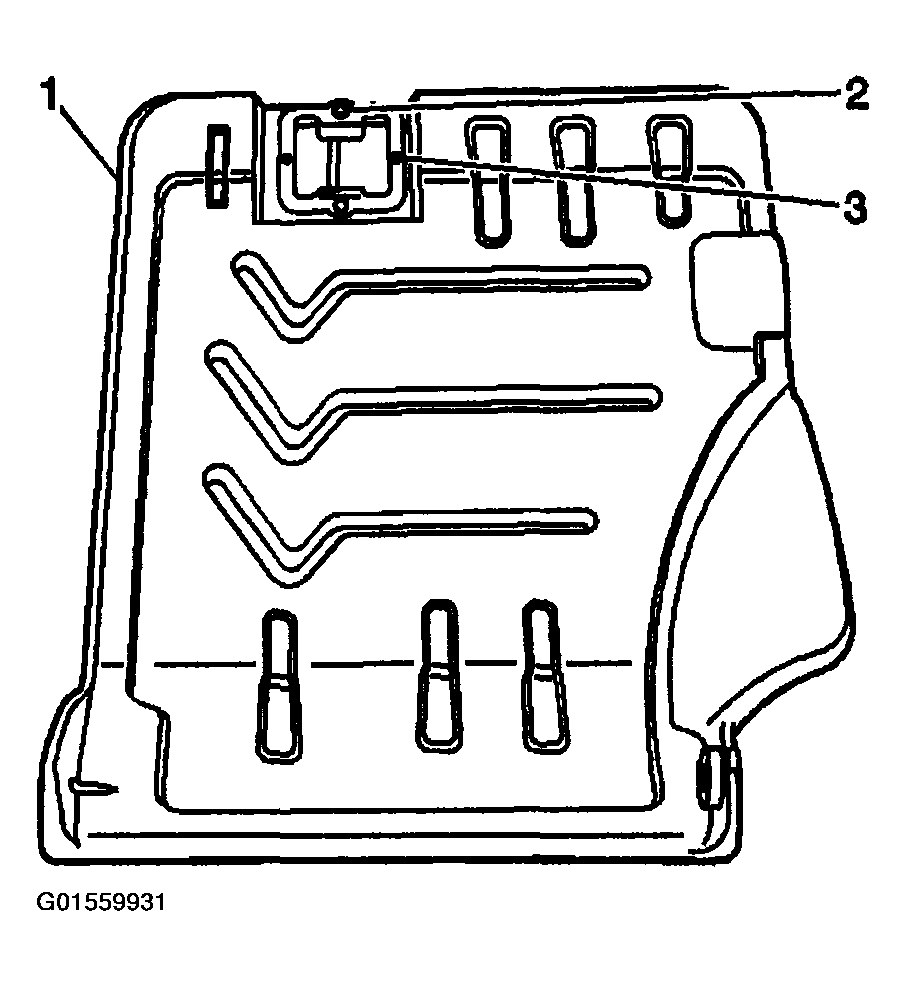

    Fig 1: Removing Latch Striker From Seat Back Frame
    G01559931Courtesy of GENERAL MOTORS CORP.
