Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back frame (11) to the recliner (8).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the recliner bolts (6).

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Install the pivot bolt (10).

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  4. Install the head restraint guides (4) to the seat back frame (11).
  5. Install the seat back cover and pad. Refer to SEAT BACK COVER REPLACEMENT - FRONT (WITH AJ7)  or SEAT BACK COVER REPLACEMENT - FRONT (WITHOUT AJ7)  .
  6. Install the front bucket seat. Refer to SEAT REPLACEMENT  .

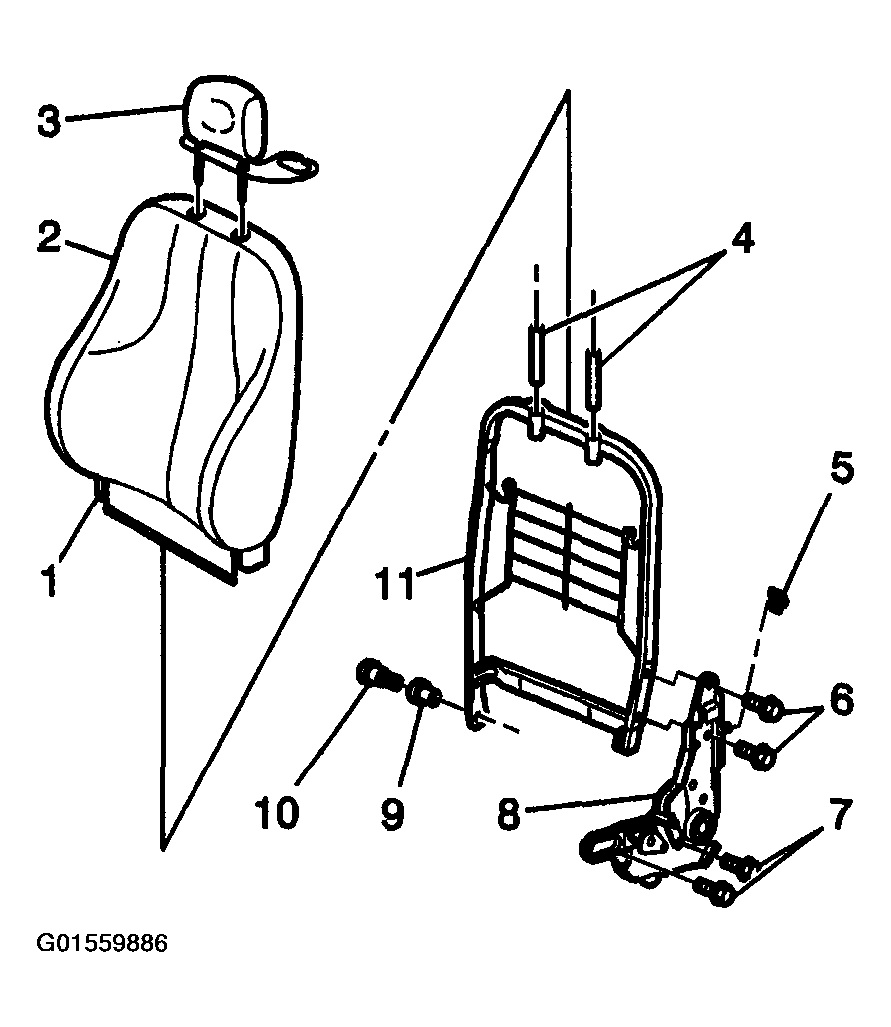

    Fig 1: Installing Seat Back Frame To Recliner
    G01559886Courtesy of GENERAL MOTORS CORP.
