Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM , or DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the front bucket seat. Refer to SEAT REPLACEMENT  .
  3. Remove the seat back cover and pad. Refer to SEAT BACK COVER REPLACEMENT - FRONT (WITH AJ7)  or SEAT BACK COVER REPLACEMENT - FRONT (WITHOUT AJ7)  .
  4. Remove the head restraint guides (6) from the seat back frame (7).
  5. Unfasten the wire harness for the inflatable restraint module.
  6. Remove the recliner bolts (9).
  7. Remove the pivot bolt (13).
  8. Remove the seat back frame (7) from the recliner (11).

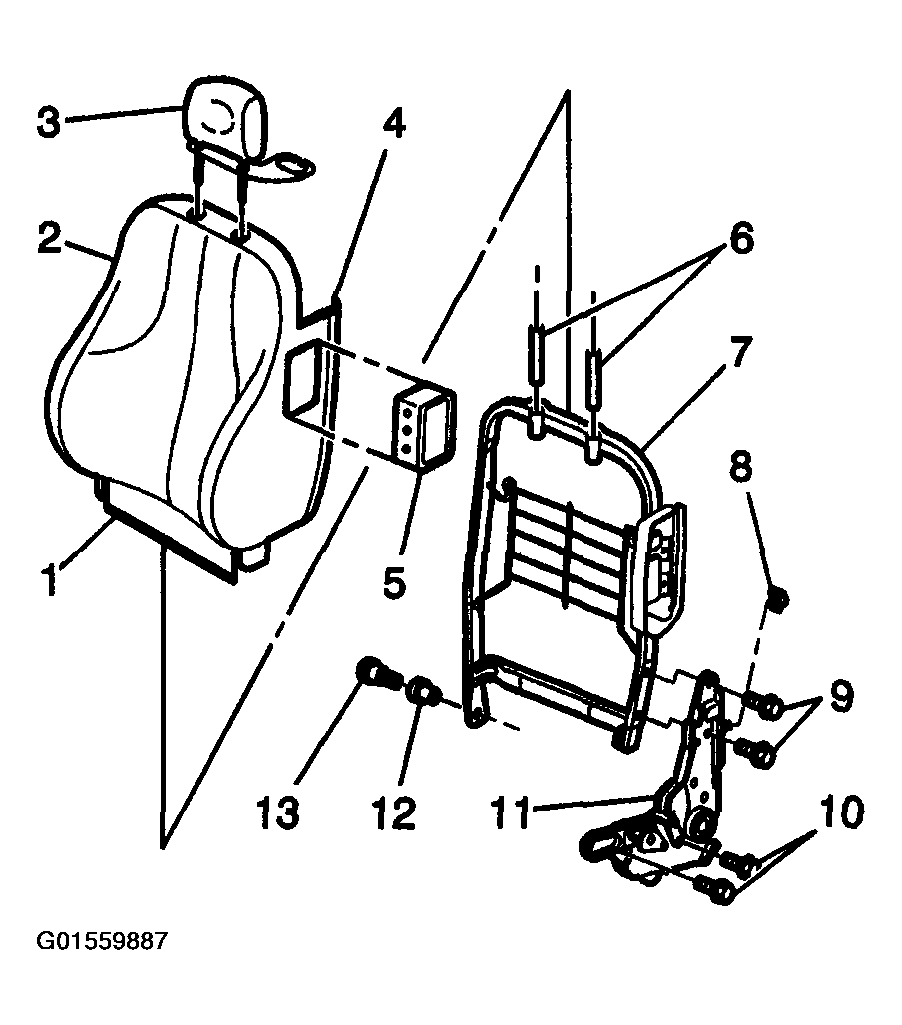

    Fig 1: Removing Head Restraint Guides From Seat Back Frame
    G01559887Courtesy of GENERAL MOTORS CORP.
