Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back frame (7) to the recliner (11).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the recliner bolts (9).

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Install the pivot bolt (13).

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  4. Fasten the wire harness for the inflatable restraint module.
  5. Install the head restraint guides (6) from the seat back frame (7).
  6. Install the seat back cover and pad. Refer to SEAT BACK COVER REPLACEMENT - FRONT (WITH AJ7)  or SEAT BACK COVER REPLACEMENT - FRONT (WITHOUT AJ7)  .
  7. Install the front bucket seat. Refer to SEAT REPLACEMENT  .
  8. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM , or DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

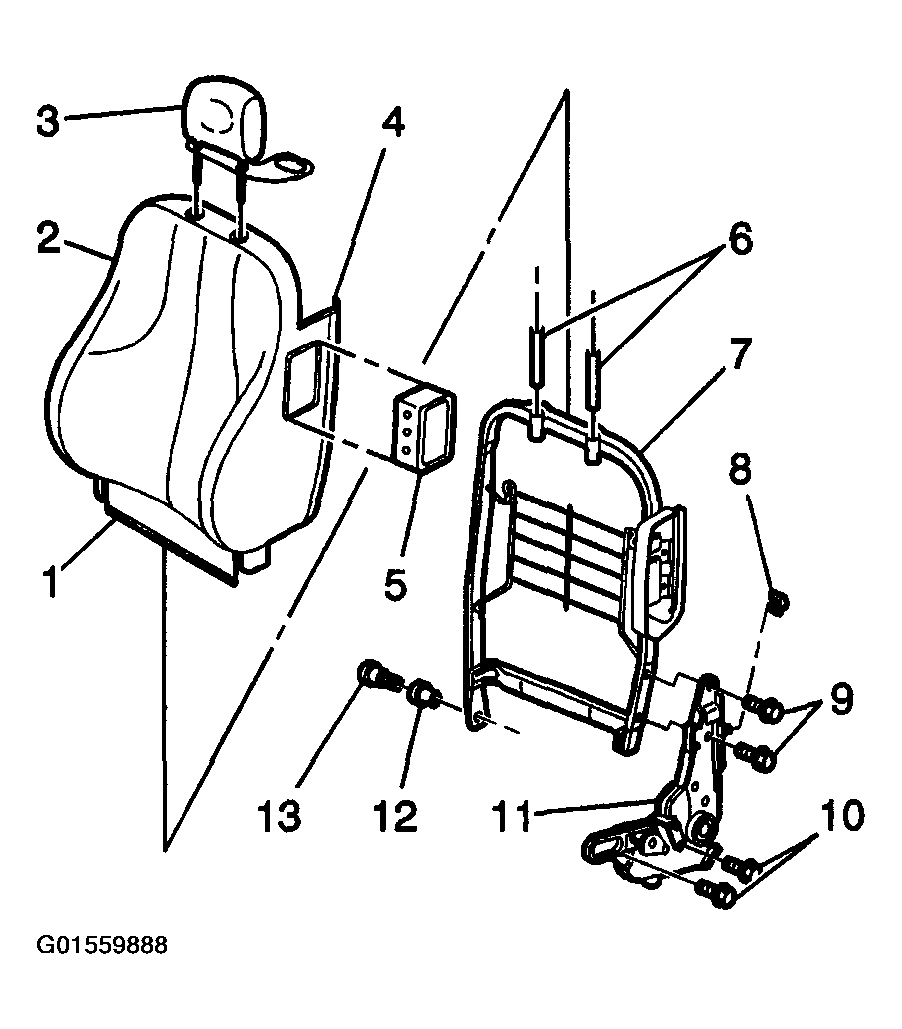

    Fig 1: Installing Head Restraint Guides From Seat Back Frame
    G01559888Courtesy of GENERAL MOTORS CORP.
