Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the bottom of the seat back cover assembly (2) down and over the frame (7).
  2. Fasten the J-hook retainer (1) located on the bottom of the seat back.
  3. Install the Side Impact Air Bag (SIAB) module. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM in SIR.
  4. Install the seat back to the seat cushion frame. Refer to SEAT BACK REPLACEMENT - FRONT  .
  5. Install the head restraint to the seat back. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .
  6. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM or DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

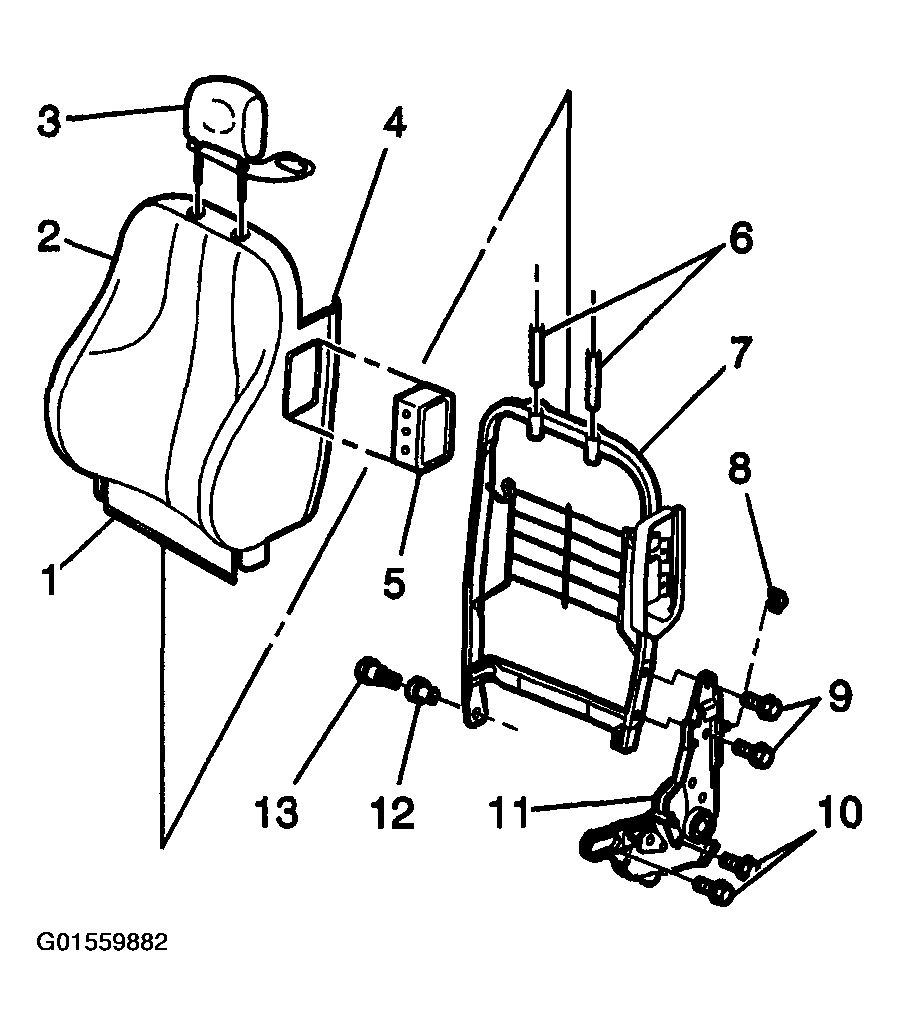

    Fig 1: Installing Seat Back To Seat Cushion Frame
    G01559882Courtesy of GENERAL MOTORS CORP.
