Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lumbar support knob by using a small flat-bladed tool to release the retainer and pulling off.
  2. Remove the lumbar support knob from the vehicle.

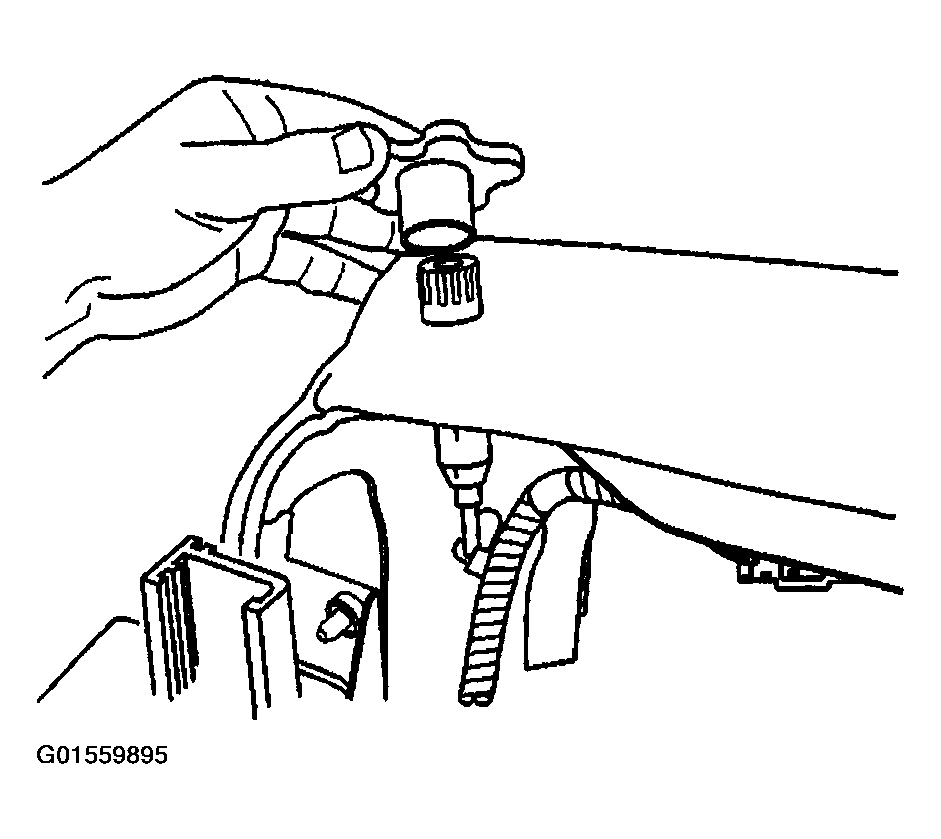

    Fig 1: Removing Lumbar Support Knob
    G01559895Courtesy of GENERAL MOTORS CORP.
