Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lumbar support knob to the splines and retainer tabs.
  2. Install the lumbar support knob, pressing into place until fully seated.

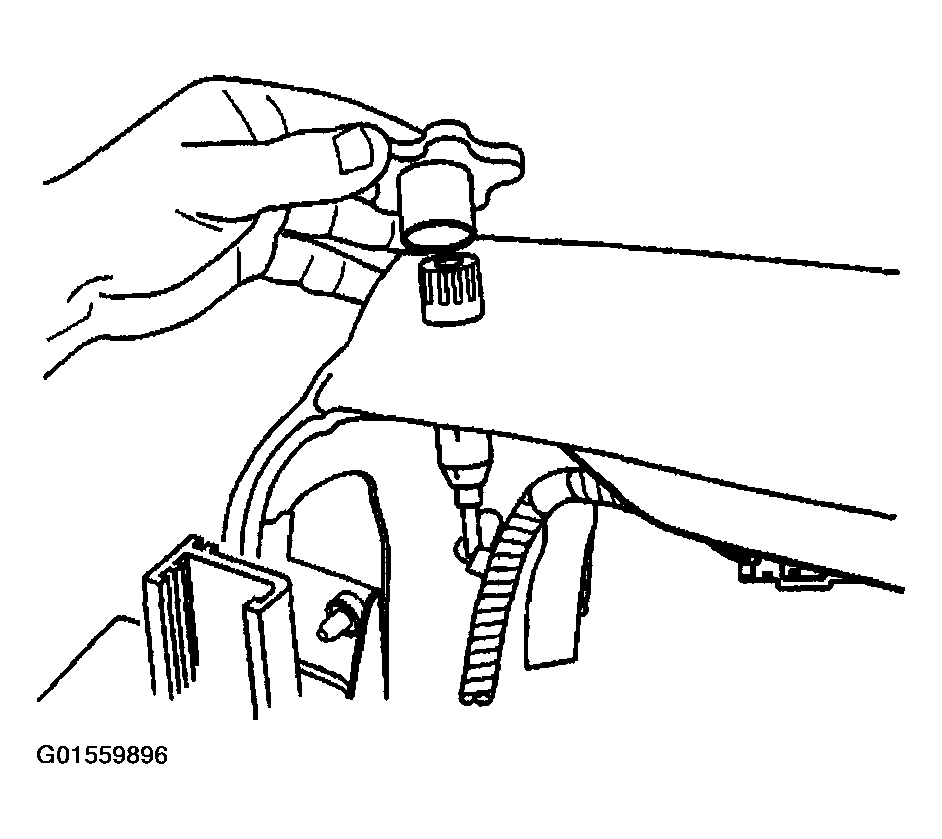

    Fig 1: Installing Lumbar Support Knob
    G01559896Courtesy of GENERAL MOTORS CORP.
