Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull off the roof auxiliary weatherstrip (2) from the roof flange beginning from the front pillar weatherstrip.
  2. Use a flat-bladed took to disengage the retainers (1) at the rear column.
  3. Remove the weatherstrip from the roof.

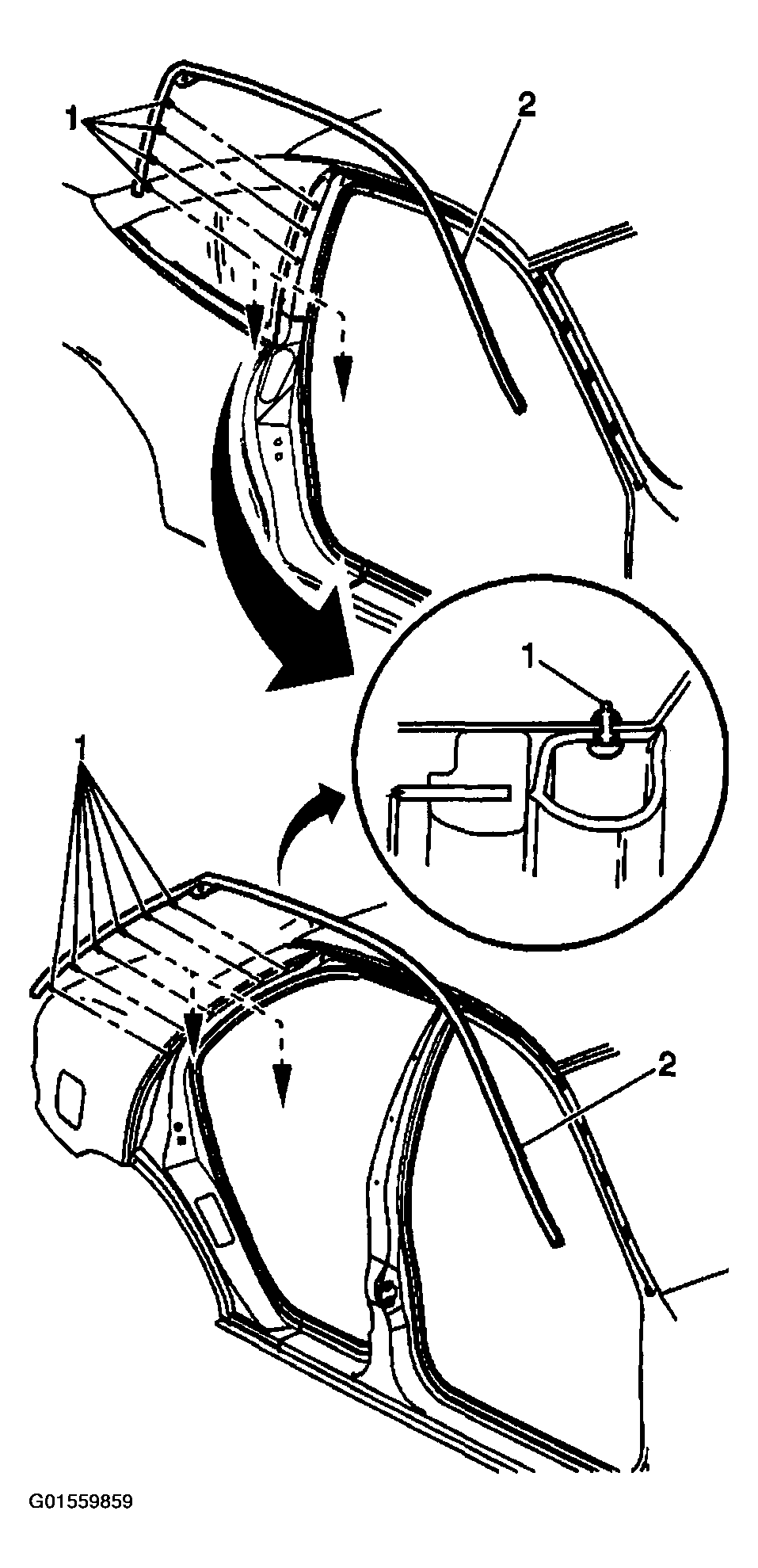

    Fig 1: Removing Roof Auxiliary Weatherstrip
    G01559859Courtesy of GENERAL MOTORS CORP.
