Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the roof weatherstrip by the roof.
  2. Install the push-in retainers (1) until fully seated.
  3. Press the remainder of the weatherstrip onto the roof flange.

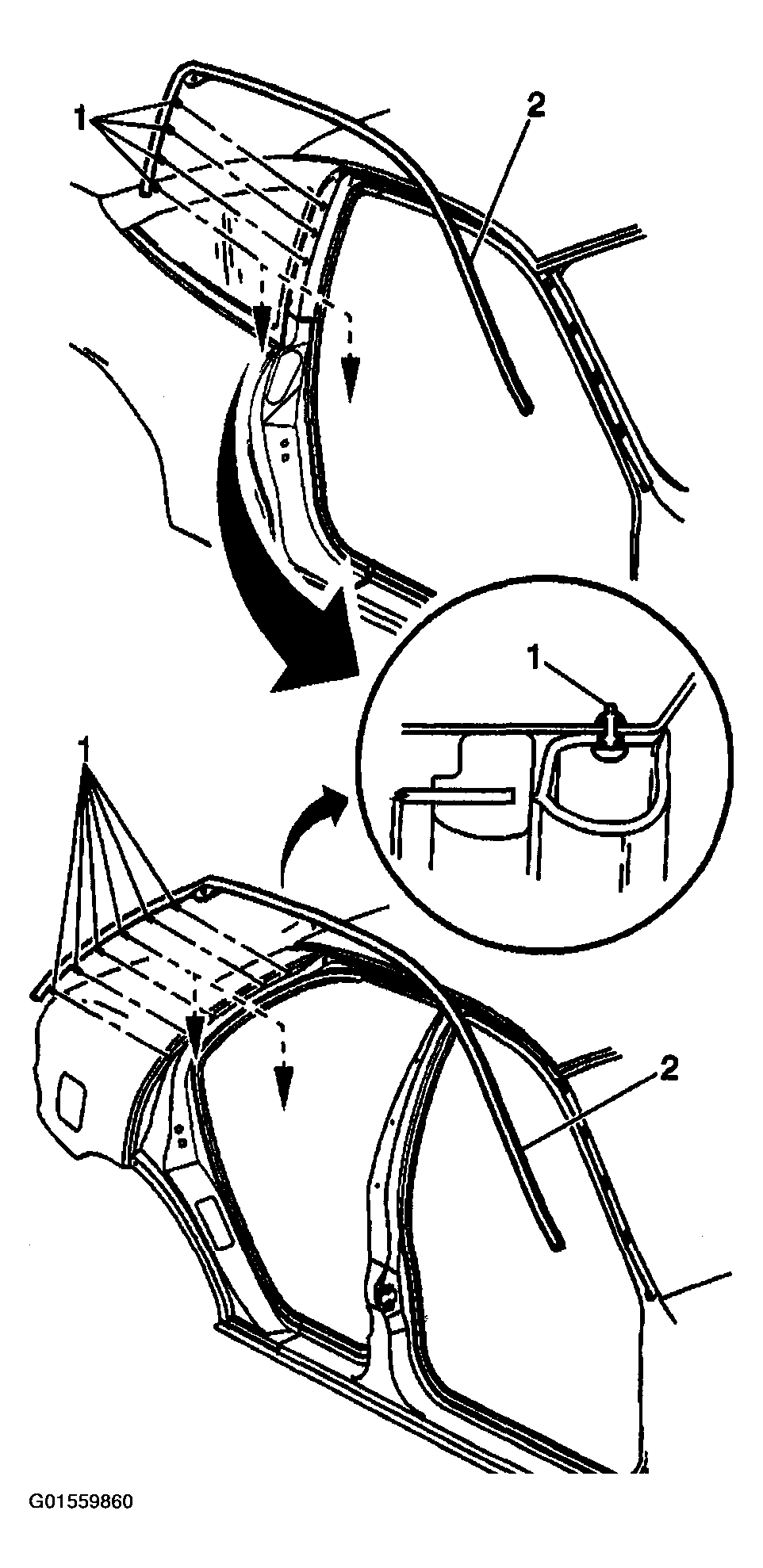

    Fig 1: Installing Roof Weatherstrip
    G01559860Courtesy of GENERAL MOTORS CORP.
