Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunroof window into the roof opening with the sunroof logo facing rearward.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the sunroof window screws (2) to the sunroof track.

    Tighten

    Tighten the sunroof window screws to 4 N.m (35 lb.in).

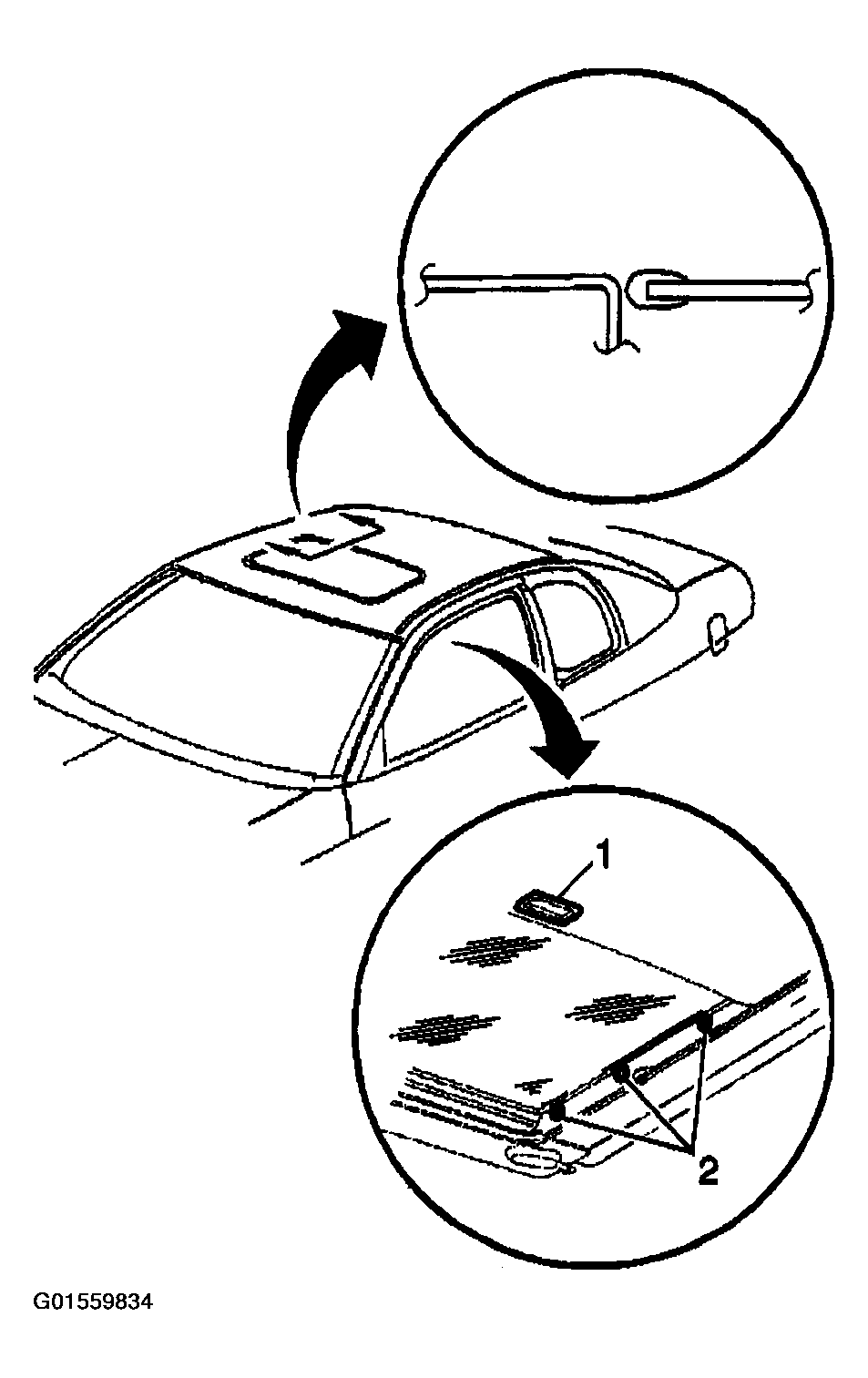

    Fig 1: Installing Sunroof Window Screws
    G01559834Courtesy of GENERAL MOTORS CORP.
  3. Check and adjust the sunroof window as necessary. Refer to SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT  .
