Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the sunroof into the full vent position.

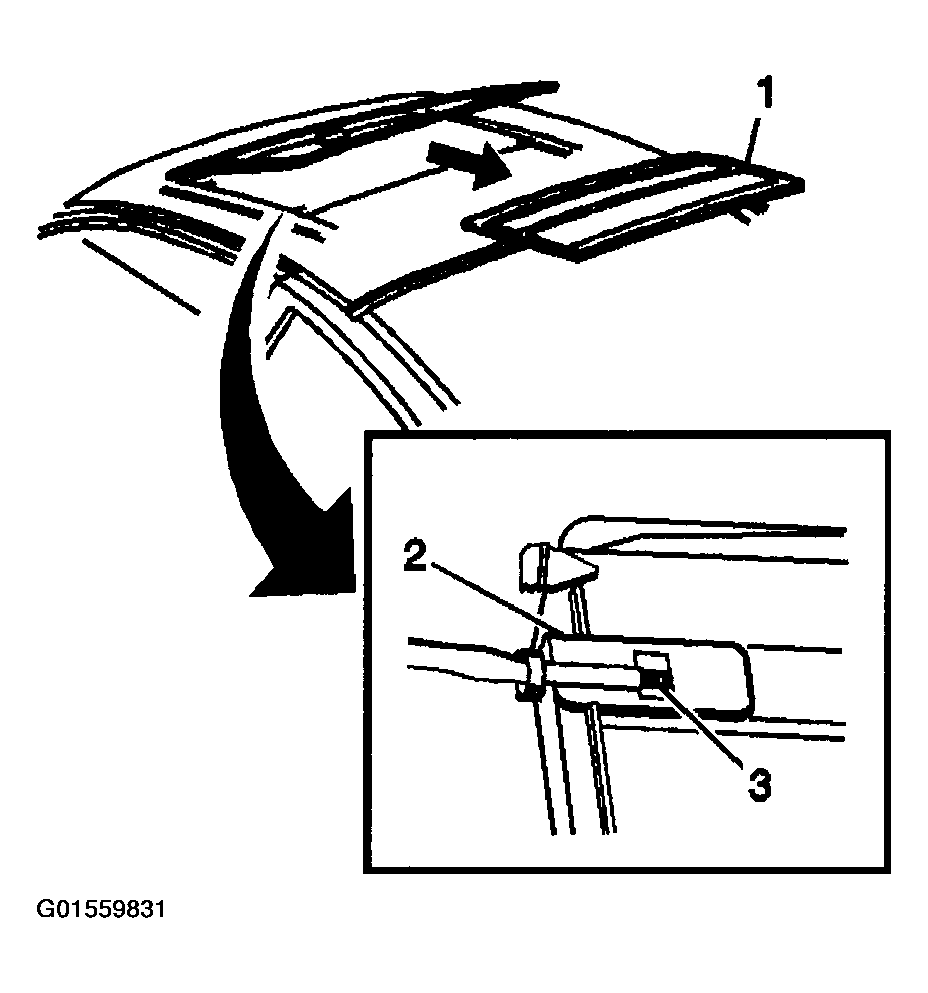

    2. Fig 1: Removing Sunroof Sunshade
    G01559831Courtesy of GENERAL MOTORS CORP.
  2. Place the sunroof sunshade (1) into the open position.
  3. Push the guide (2) on the left front sunroof sunshade toward the middle of the vehicle.
  4. Disengage the guide from the track on the left front sunroof sunshade.
  5. Slide the sunroof sunshade into the closed position.
  6. Push the guide on the left rear sunroof sunshade toward the middle of the vehicle.
  7. Disengage the guide on the left rear sunroof sunshade.
  8. Remove the sunroof sunshade (1) from the vehicle using the following procedure:
    1. Pull the sunroof sunshade towards the left side of the vehicle in order to disengage the guides on the right side sunroof sunshade.
    2. Pull the sunroof sunshade out between the glass panel and the roof.
