Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the sunroof in the full vent position, install the sunroof sunshade (1) into the vehicle between the roof and the glass panel.

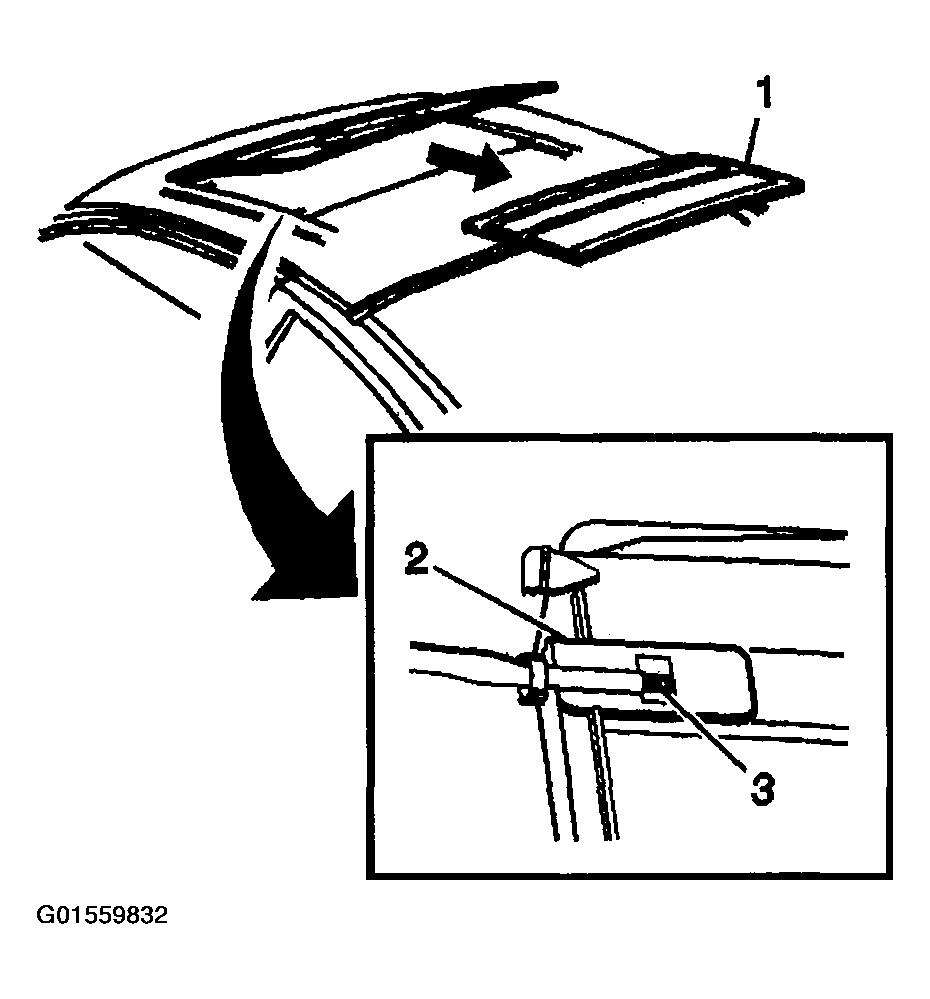

    Fig 1: Installing Sunroof Sunshade
    G01559832Courtesy of GENERAL MOTORS CORP.
  2. Position the guides on the right side sunroof sunshade to the guide rail.
  3. Engage the guide on the left rear sunroof sunshade to the guide rail using a flat bladed tool.
  4. Slide the sunroof sunshade to the open position.
  5. Engage the guide on the left front sunroof sunshade to the guide rail.
  6. Check for proper operation of the sunshade.
  7. Close the sunroof.
