Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunroof window. Refer to SUNROOF WINDOW REPLACEMENT  .
  2. Remove the weatherstrip by pulling the weatherstrip (1) away from the glass panel.

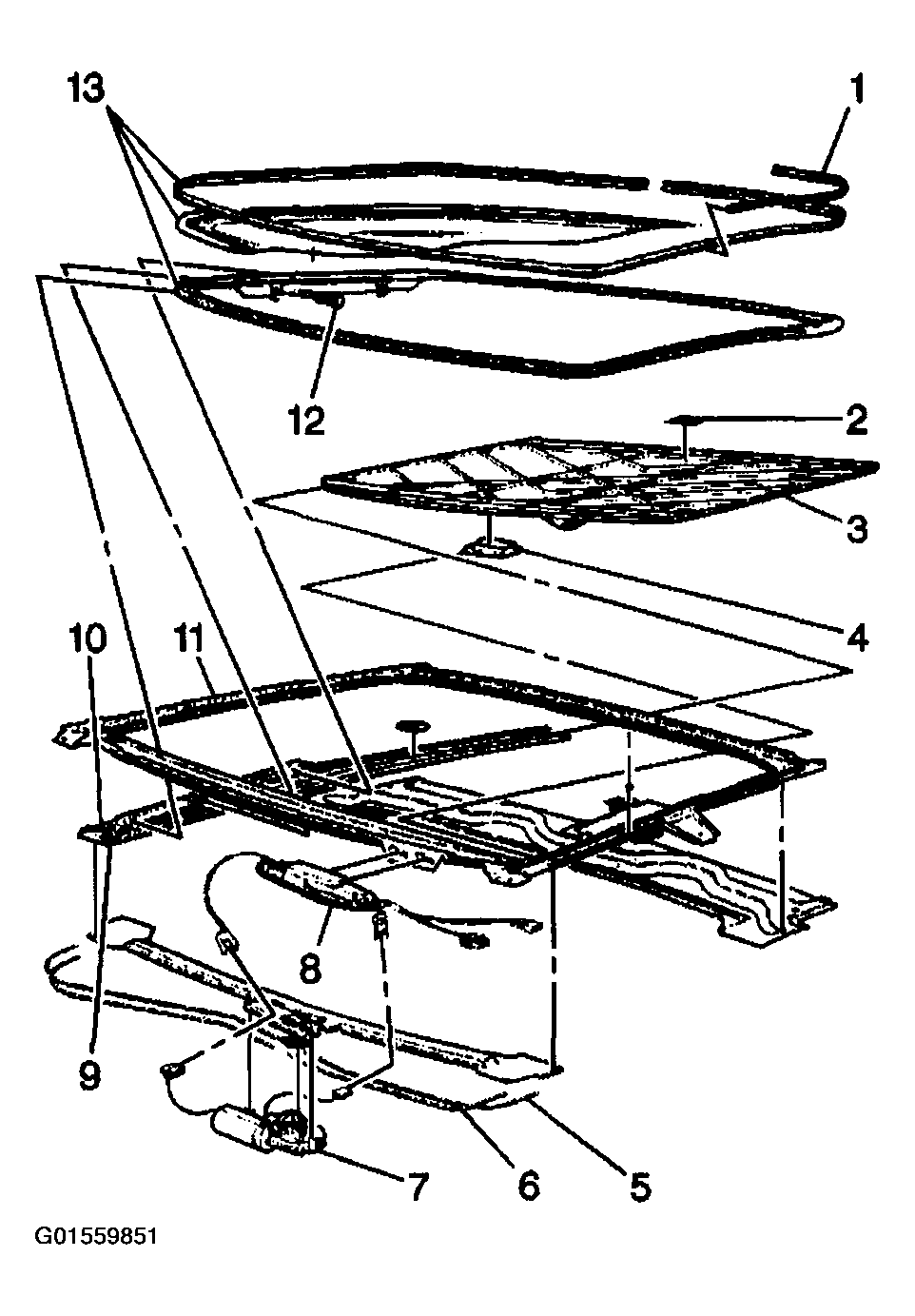

    Fig 1: Removing Weatherstrip & Assembly
    G01559851Courtesy of GENERAL MOTORS CORP.
