Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the butt joint with the center of the sunroof window on the passenger side of the vehicle.
  2. Work the weatherstrip into the channel in the glass panel frame. Continue to work the weatherstrip (1) until the weatherstrip is firmly press fit into the channel. Install the weatherstrip around the entire sunroof glass panel.
  3. Install the sunroof window. Refer to SUNROOF WINDOW REPLACEMENT  .

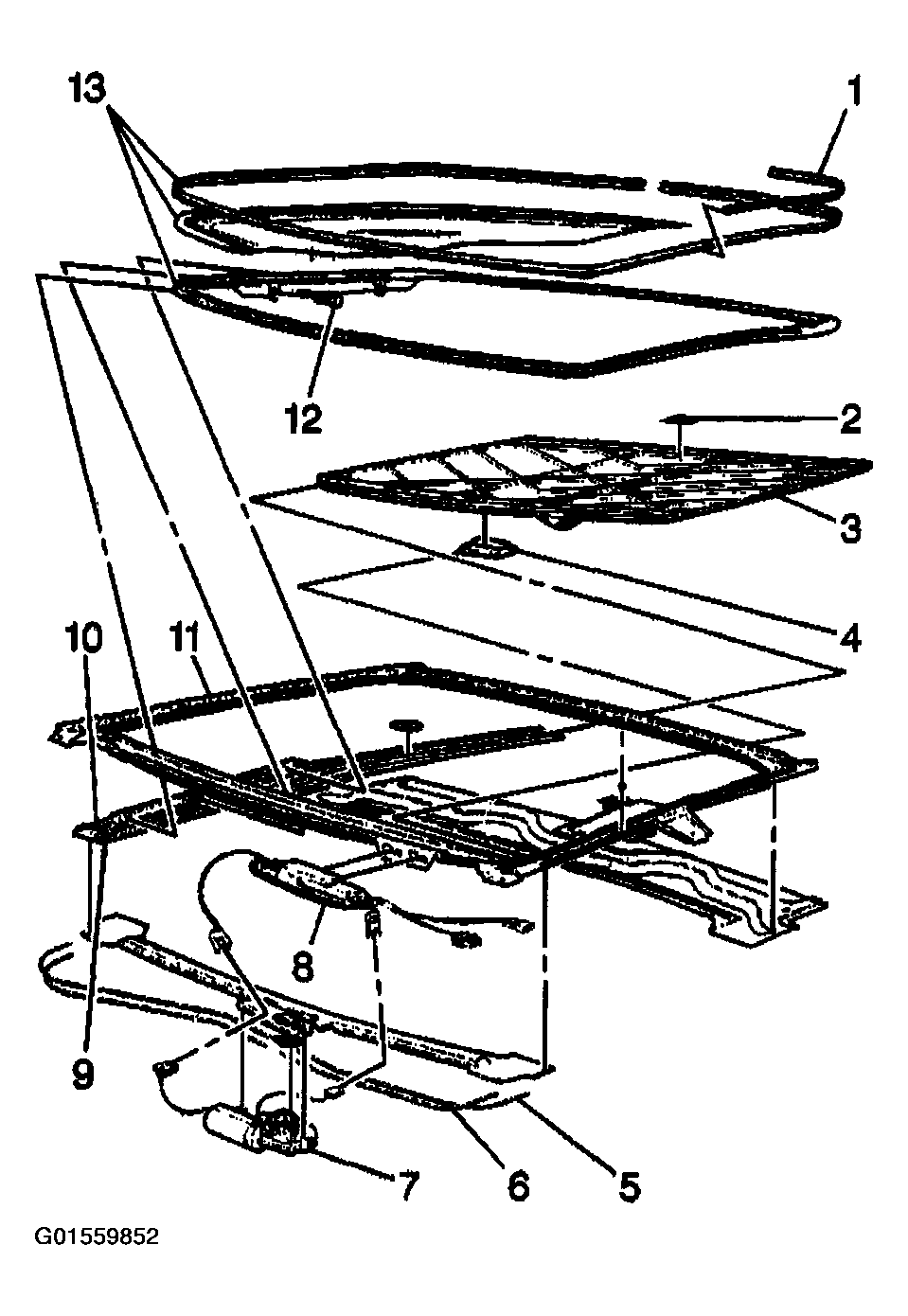

    Fig 1: Installing Weatherstrip & Assembly
    G01559852Courtesy of GENERAL MOTORS CORP.
