Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

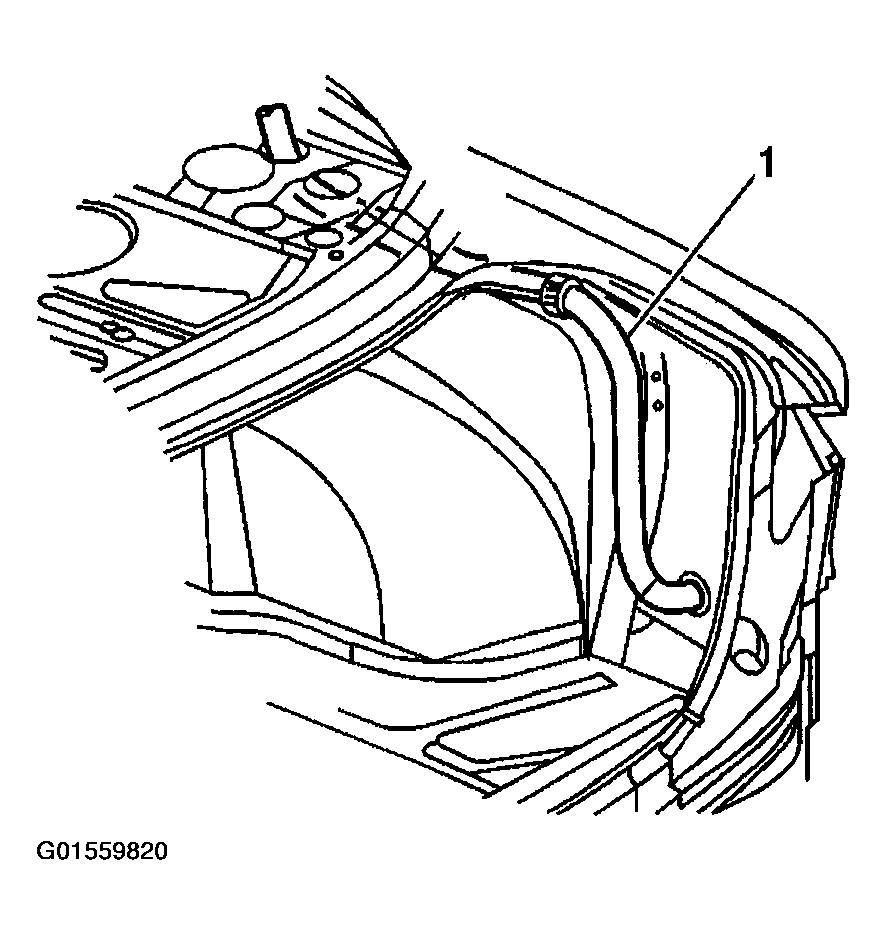

Fig 1: Removing Sun Roof Drain Hose (Rear)

G01559820

Courtesy of GENERAL MOTORS CORP.

Pull back the trunk carpeting away from the sides of the trunk to expose the sun roof drain hose (1).

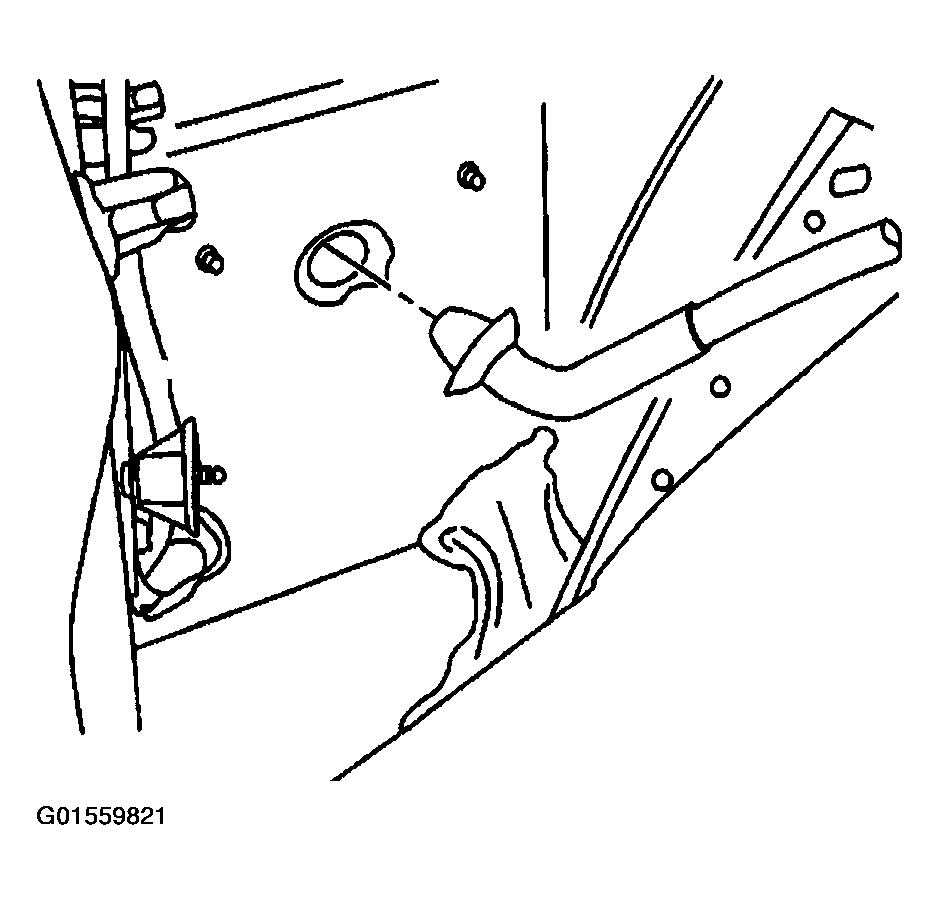

Fig 2: Removing Outlet Of Quarter Panel Drain Hole

G01559821

Courtesy of GENERAL MOTORS CORP.

Pull the outlet out of the quarter panel drain hole.

Fig 3: Separating Outlet From Sunroof Drain Hose

G01559822

Courtesy of GENERAL MOTORS CORP.

Separate the outlet from the sunroof drain hose.

Fig 4: Removing Sunroof Drain Hose From Retaining Clip

G01559823

Courtesy of GENERAL MOTORS CORP.

Release the sunroof drain hose from the retaining clip along the quarter panel.

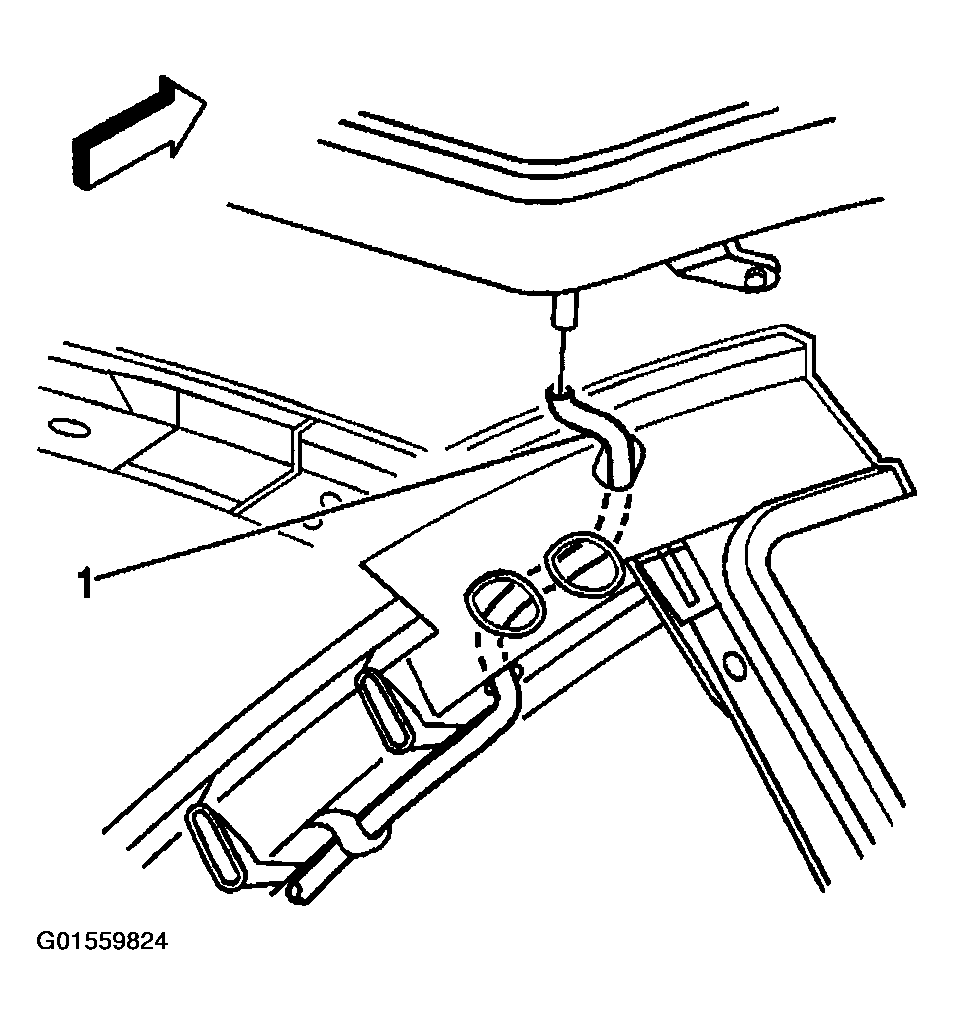

Fig 5: Disconnecting Sunroof Drain Hose

G01559824

Courtesy of GENERAL MOTORS CORP.

Disconnect the sunroof drain hose (1) from the sun roof rear drain port.

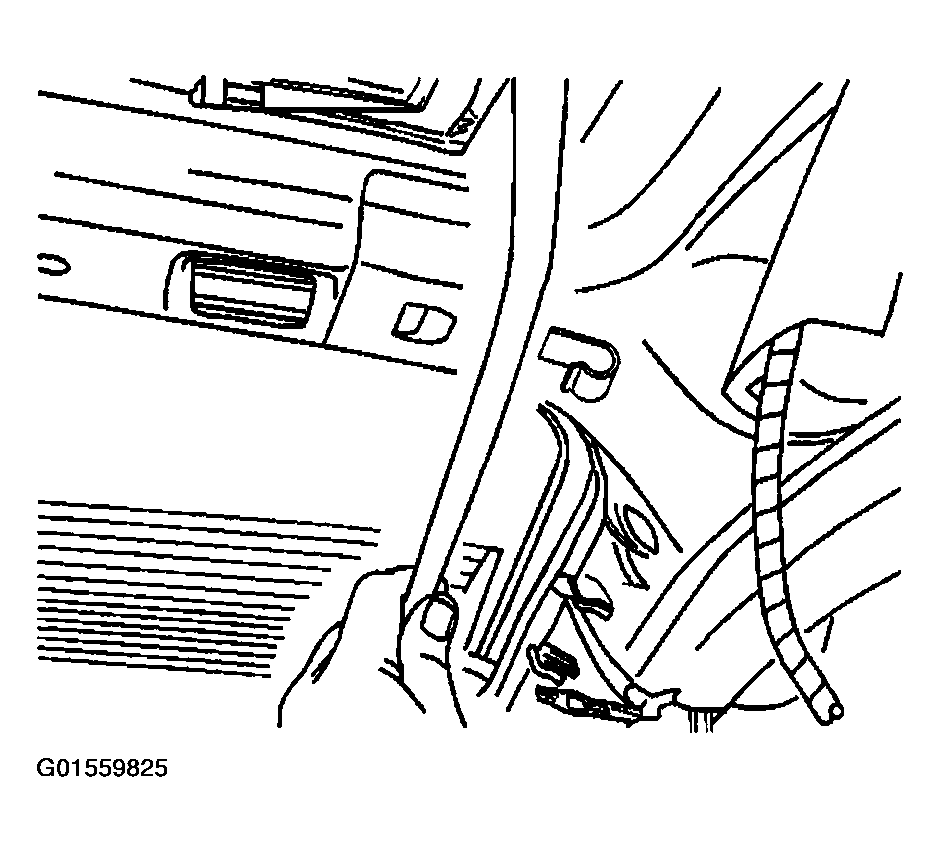

Fig 6: Removing Rear Sunroof Drain Hose Through Rear Compartment Access Hole

G01559825

Courtesy of GENERAL MOTORS CORP.

Release the sunroof drain hose from the retaining clip along the rear pillar.
Remove the rear sunroof drain hose through the rear compartment access hole, located between the seat belt retractor and the rear window.
