Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Install the sunroof drain hose into the rear compartment through the access hole.

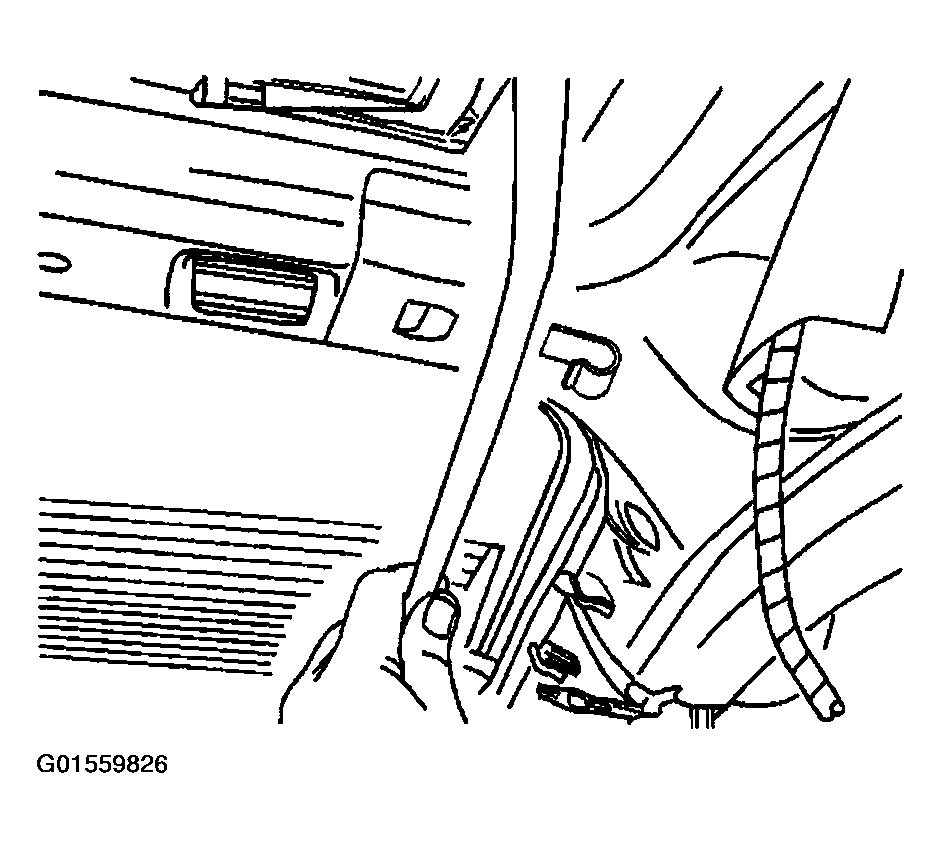

Fig 1: Installing Sunroof Drain Hose Into Rear Compartment Through Access Hole

G01559826

Courtesy of GENERAL MOTORS CORP.

Press the sunroof drain hose into the retaining clip along the rear pillar.

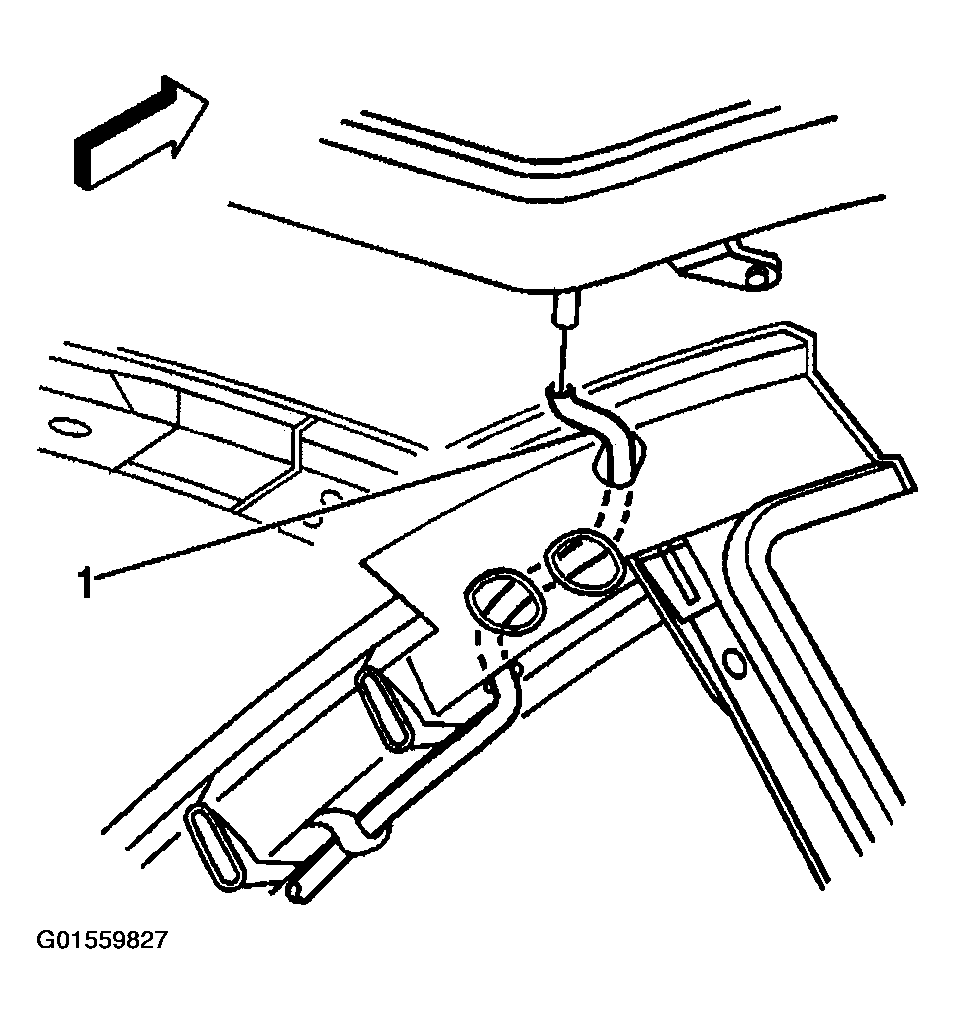

Fig 2: Connecting Sunroof Drain Hose

G01559827

Courtesy of GENERAL MOTORS CORP.

Connect the sunroof drain hose (1) to the sunroof rear drain port.

Fig 3: Installing Sunroof Drain Hose Into Retaining Clip

G01559828

Courtesy of GENERAL MOTORS CORP.

Press the sunroof drain hose into the retaining clip along the quarter panel.

Fig 4: Connecting Sunroof Drain Hose To Drain Hose Outlet

G01559829

Courtesy of GENERAL MOTORS CORP.

Connect the sunroof drain hose to the drain hose outlet.

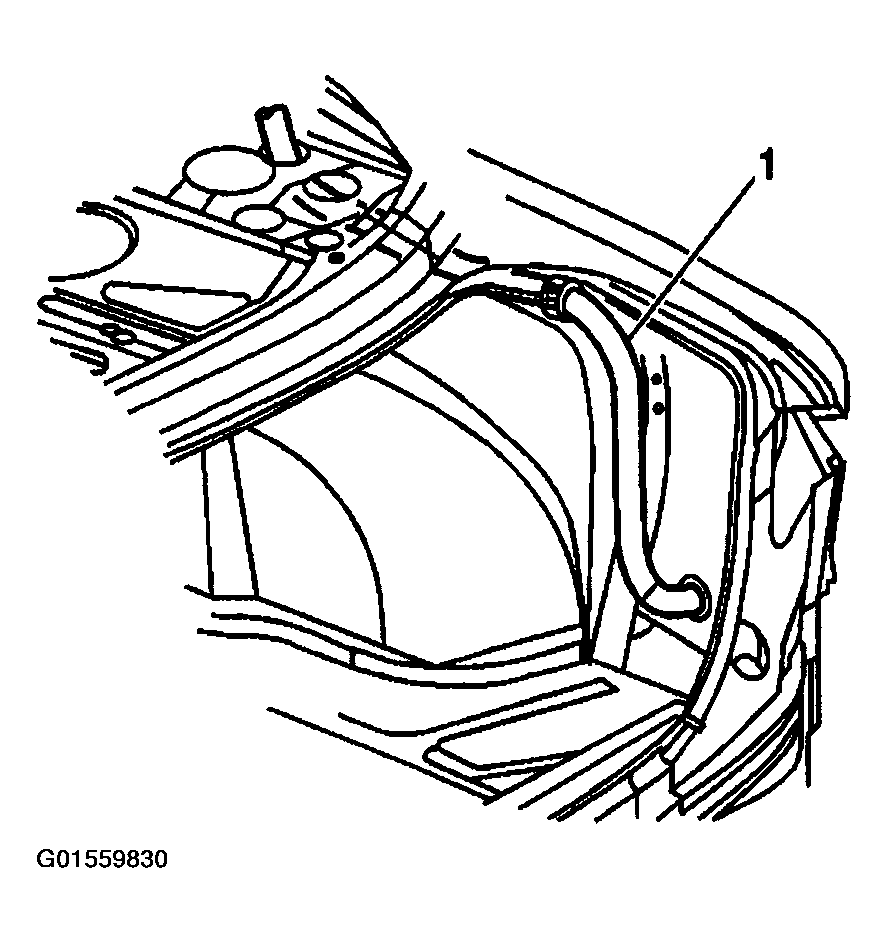

Fig 5: Installing Sunroof Drain Hose Outlet Into Quarter Panel Drain Hole

G01559830

Courtesy of GENERAL MOTORS CORP.

Press the sunroof drain hose (1) outlet into the quarter panel drain hole.
Check the sunroof drain hose for play. Secure the drain hose to the quarter panel or roof with 3M™ double sided tape P/N 06377 or equivalent, to prevent rattles.
Place the rear compartment trim back to the original position.
Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
