Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner as required. Refer to HEADLINER REPLACEMENT in Interior Trim.

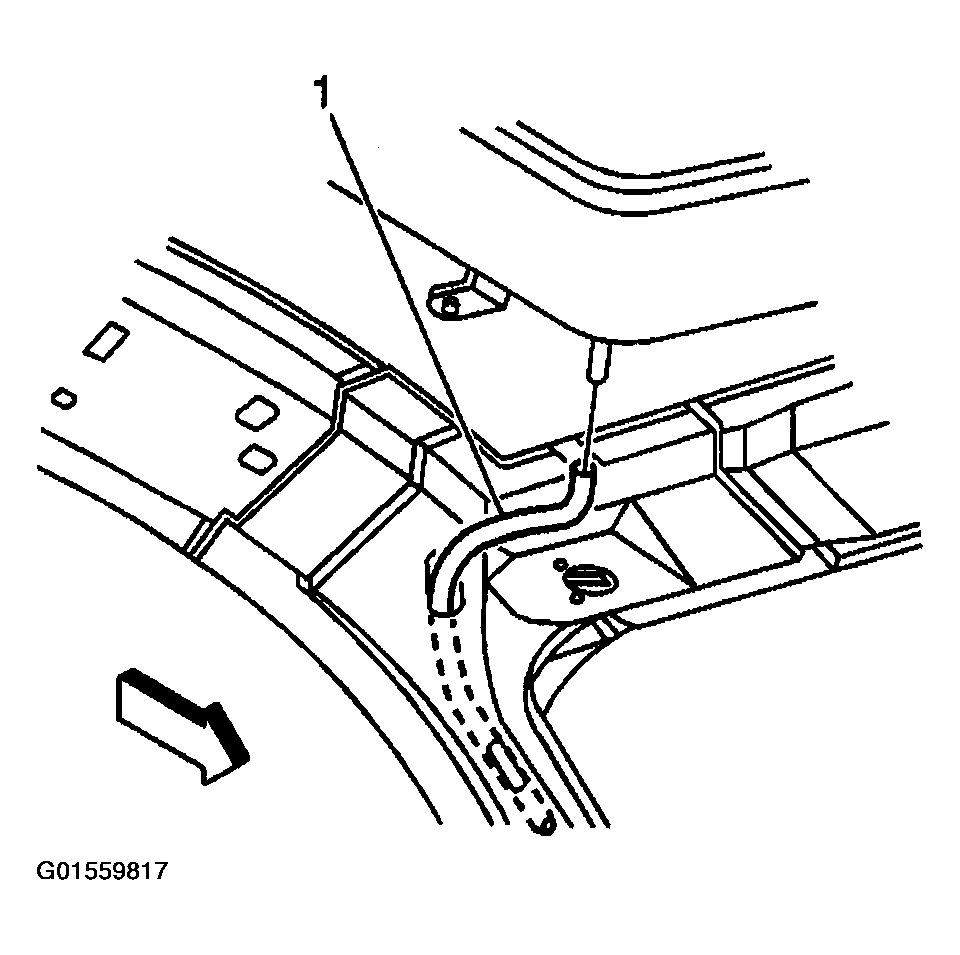

    2. Fig 1: Removing Sunroof Drain Hose
    G01559817Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the drain hose drain port (1) connection from the sunroof module.
  3. Cut through the sealer that is located inside the bottom of the windshield pillar in order to loosen the drain hose (1). Use a stiff rod bent at 90 degrees.
  4. Remove the sunroof drain hose (1) from the windshield pillar.
