Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Route the sunroof front drain hose (1) through the windshield pillar and into the drain hole. The drain hose is located near the door hinges.
Connect the sunroof front drain hose drain port (1) connection to the sunroof module.

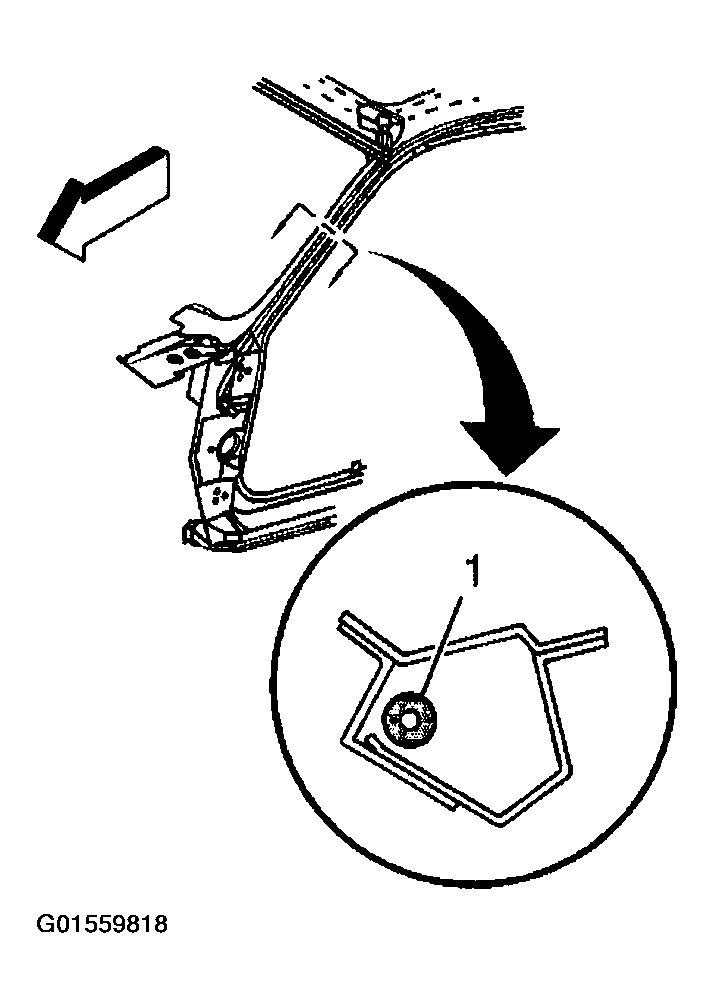

Fig 1: Routing Sunroof Front Drain Hose
Courtesy of GENERAL MOTORS CORP.
Apply sealer to the inside bottom of the windshield pillar and around the sunroof front drain hose (1).

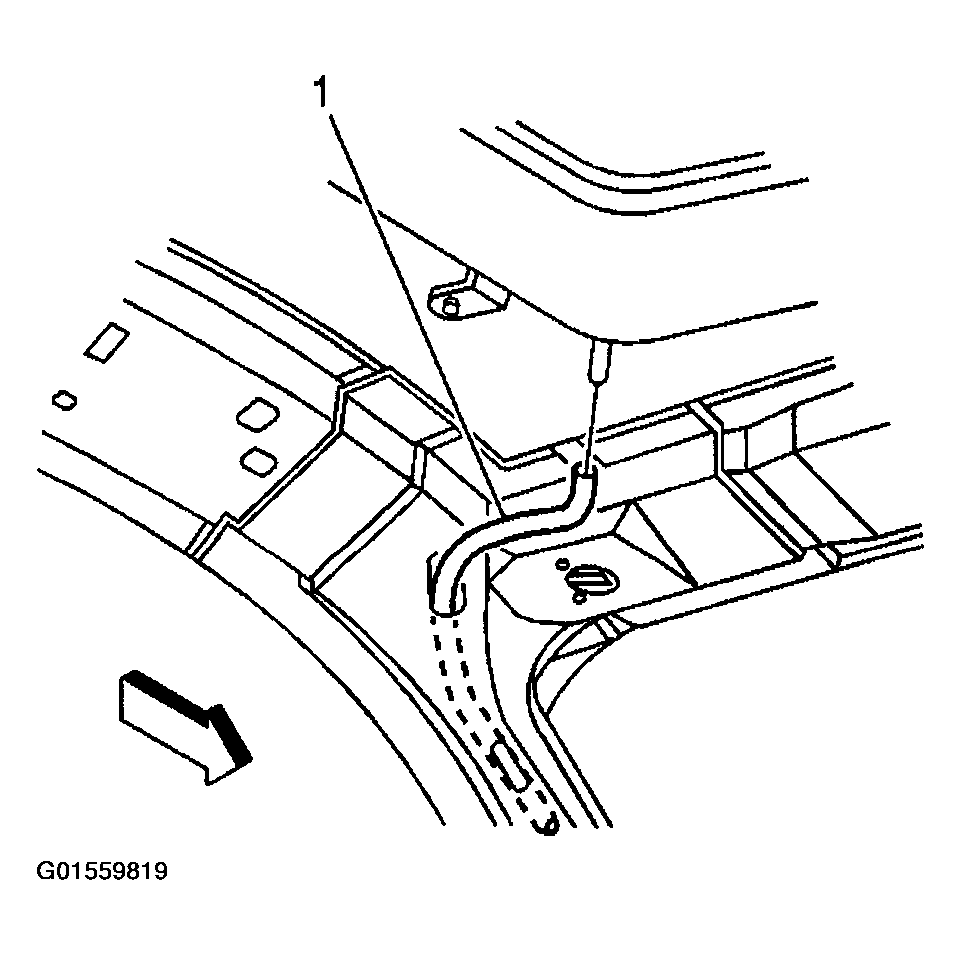

Fig 2: Connecting Sunroof Front Drain Hose Drain Port
Courtesy of GENERAL MOTORS CORP.
Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
