Power Window Schematics (Power, Ground and Window Controls - Sedan)

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

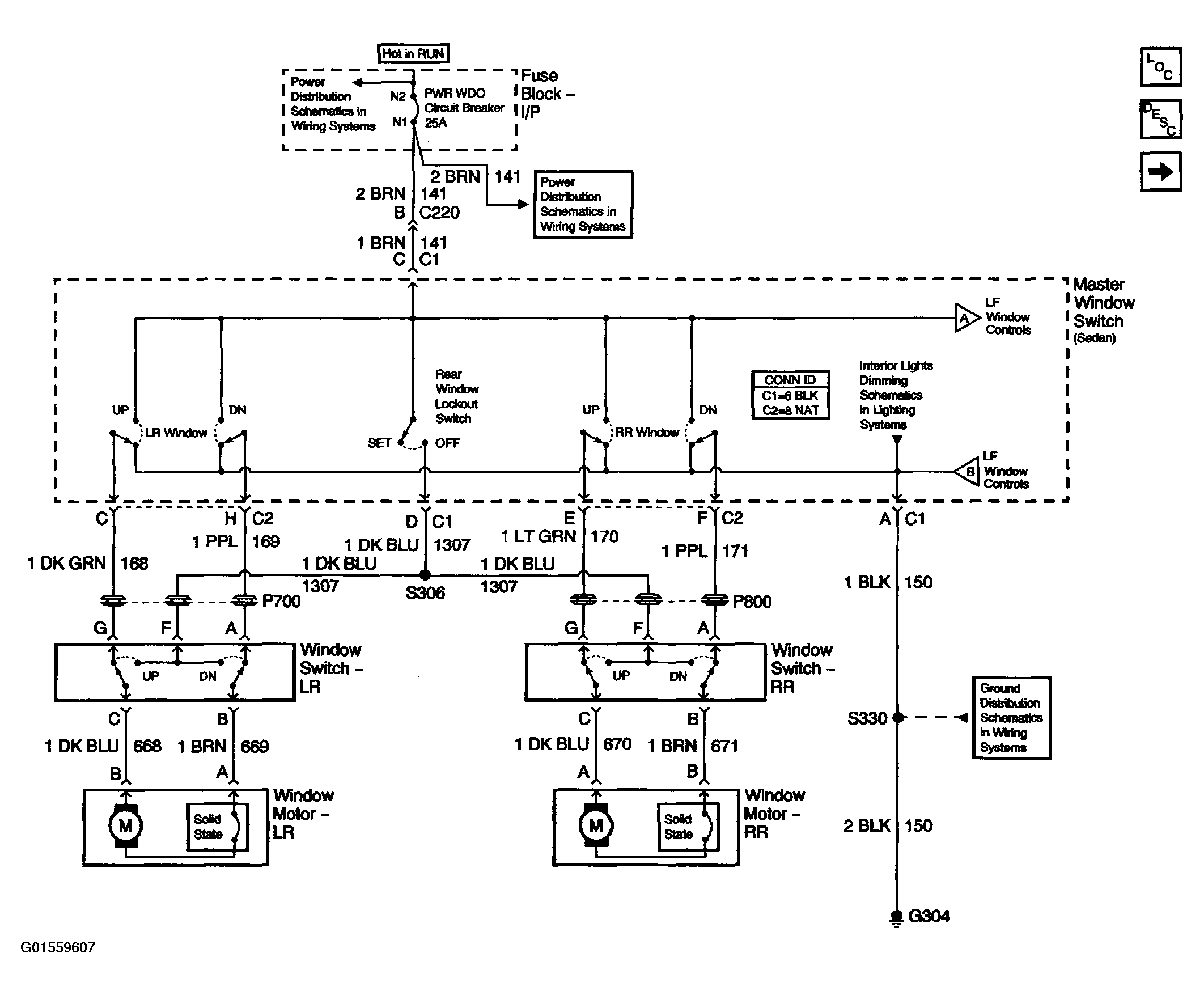

Fig 1: Power Window Schematic (Power, Ground And Window Controls - Sedan)

Courtesy of GENERAL MOTORS CORP.

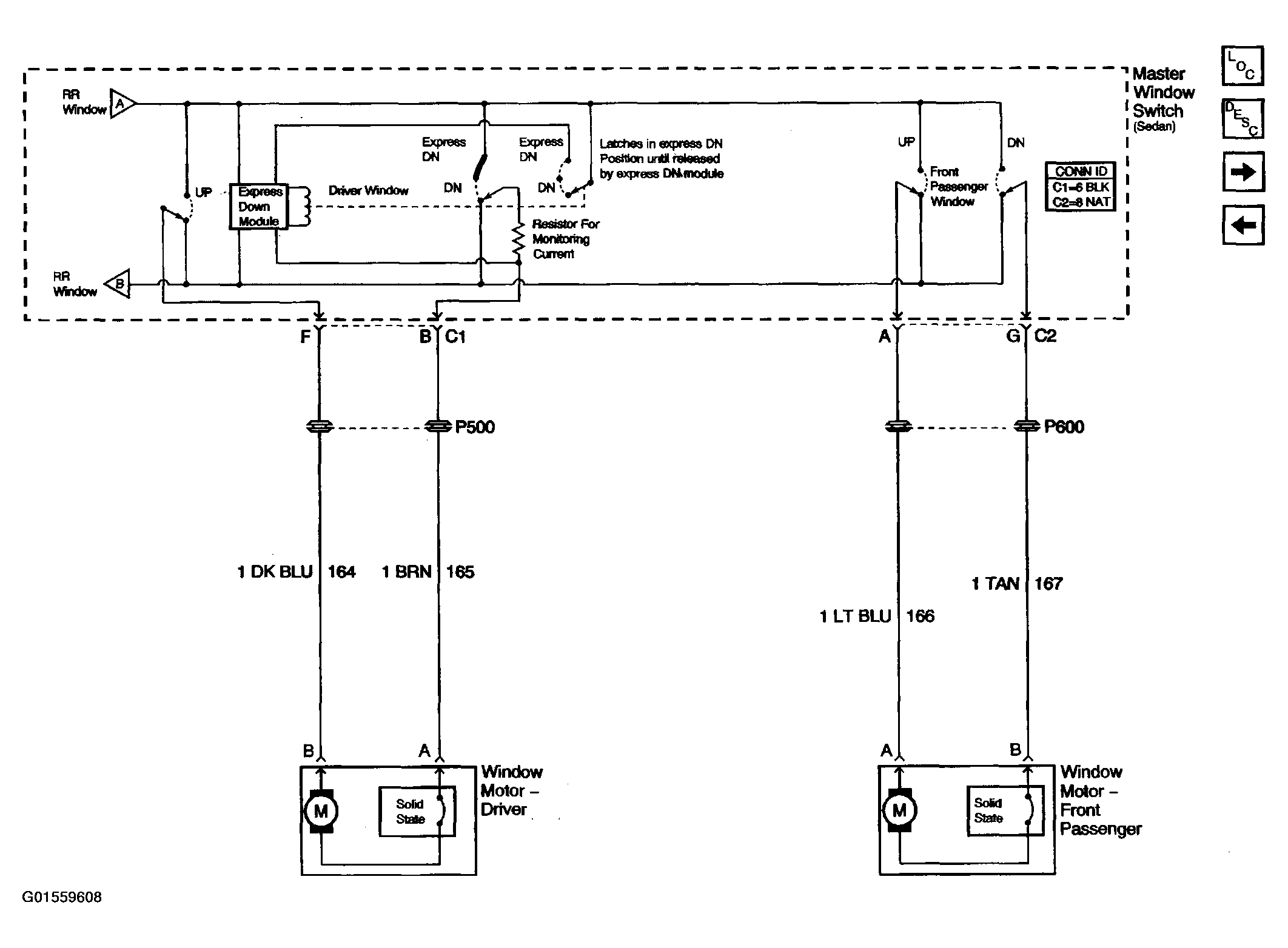

Fig 2: Power Window Schematic (Front Window Controls - Sedan)

Courtesy of GENERAL MOTORS CORP.

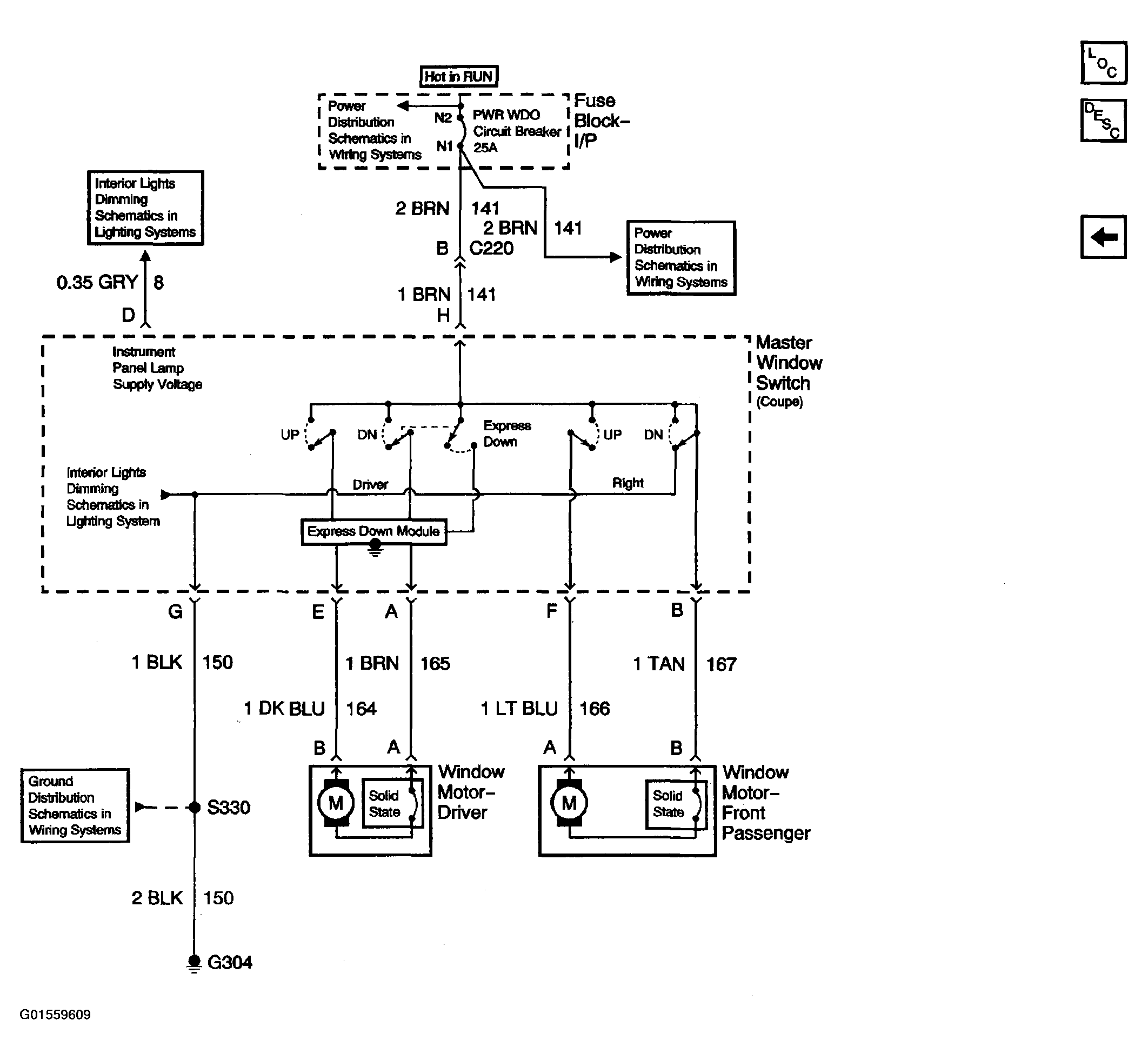

Fig 3: Power Window Schematic (Window Controls - Coupe)

Courtesy of GENERAL MOTORS CORP.
