Door Lock/Indicator Schematics (Door Lock - Sedan w/o AUO)
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

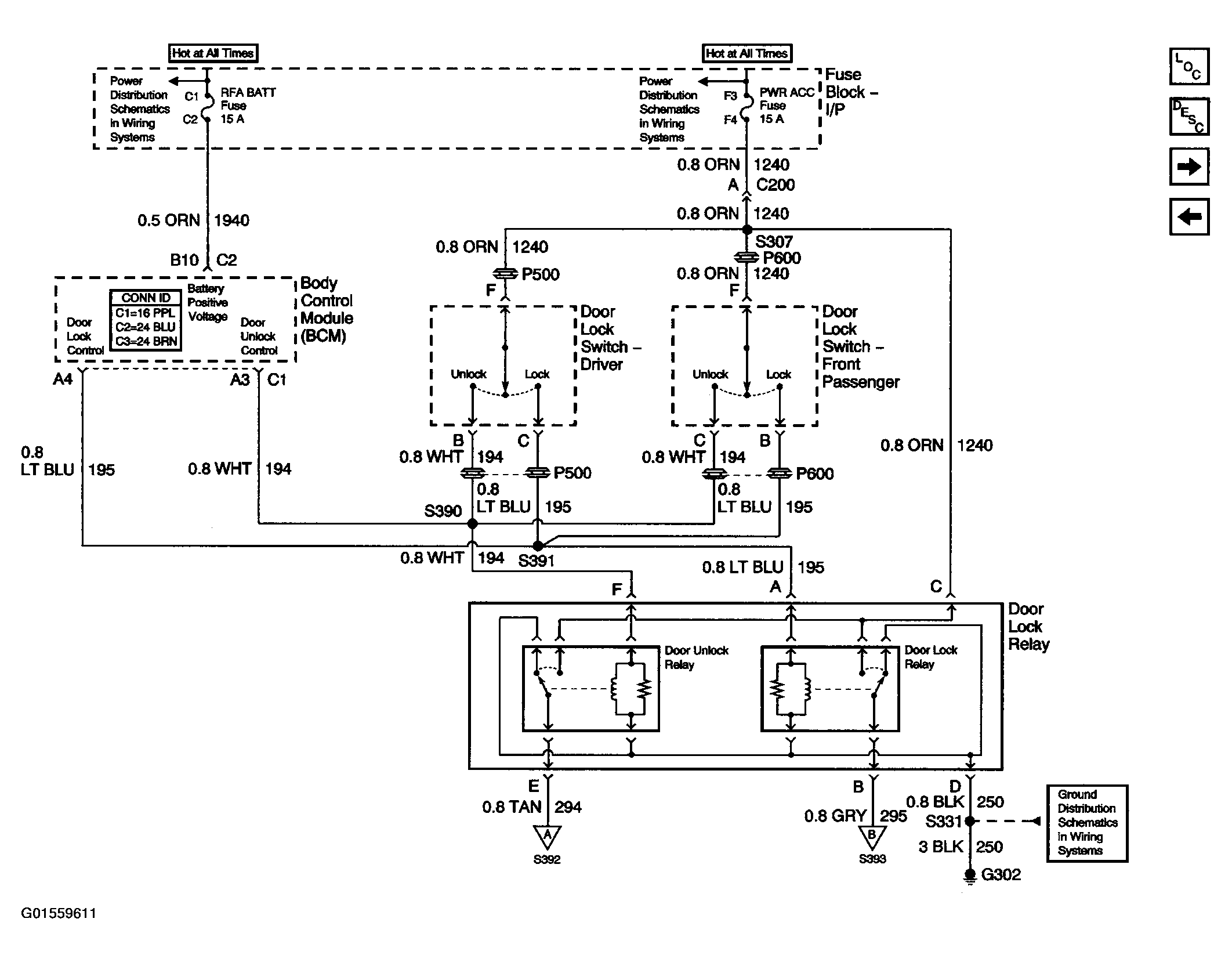

Fig 1: Door Lock/Indicator Schematic (Door Lock - Sedan w/o AUO)
Courtesy of GENERAL MOTORS CORP.

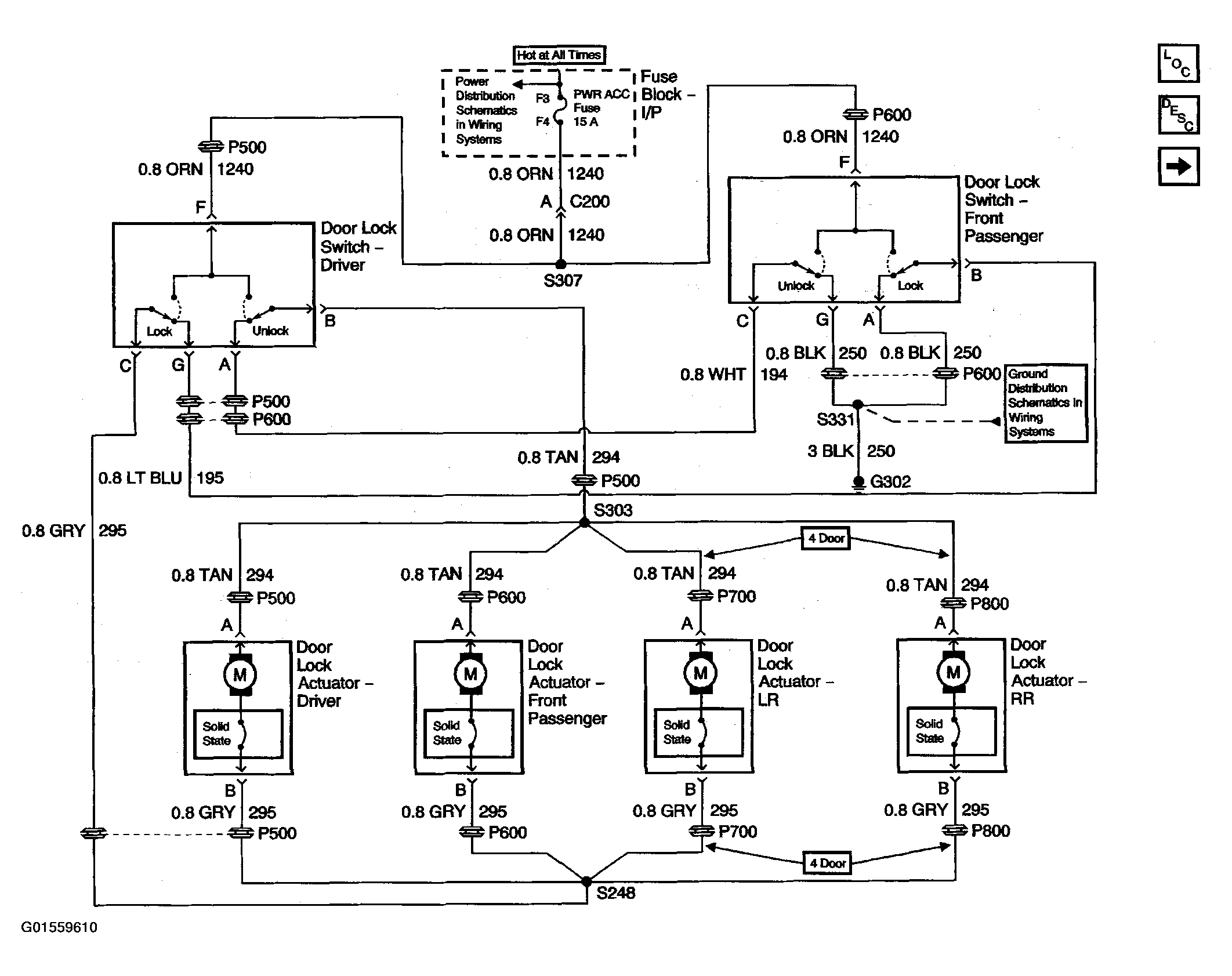

Fig 2: Door Lock/Indicator Schematic (Switches And Controls - w/AUO)
Courtesy of GENERAL MOTORS CORP.

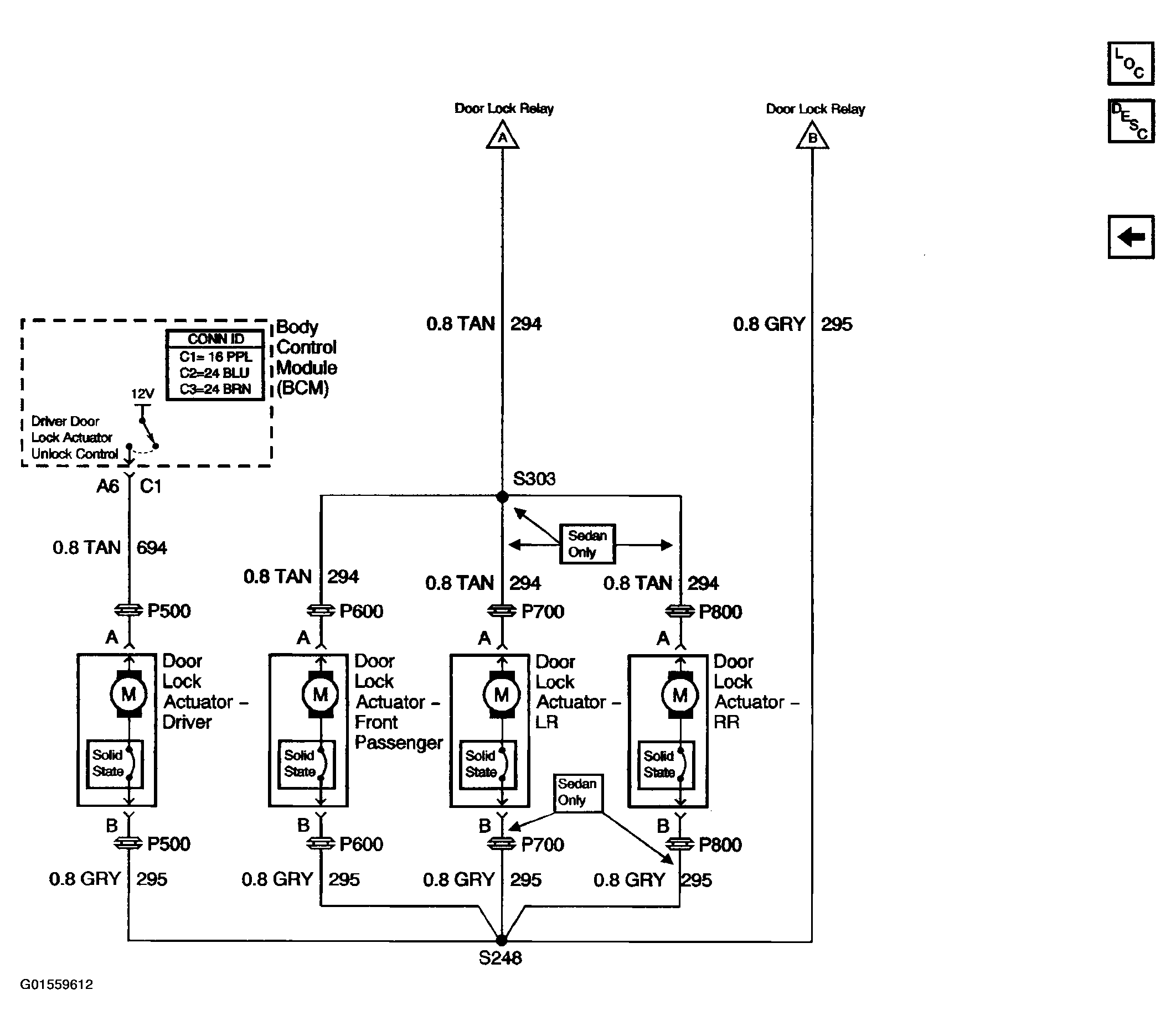

Fig 3: Door Lock/Indicator Schematic (Door Lock Motors - w/AUO)
