Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Note the position of the door window regulator handle with the window in the full up position.
  2. Place the door window regulator handle in the upward position.
  3. Remove the spring clip by inserting J 9886-01  between the window regulator handle and the door window regulator handle bearing plate. Press down to remove the spring clip.
  4. Remove the window regulator handle.
  5. Remove the door window regulator handle bearing plate.

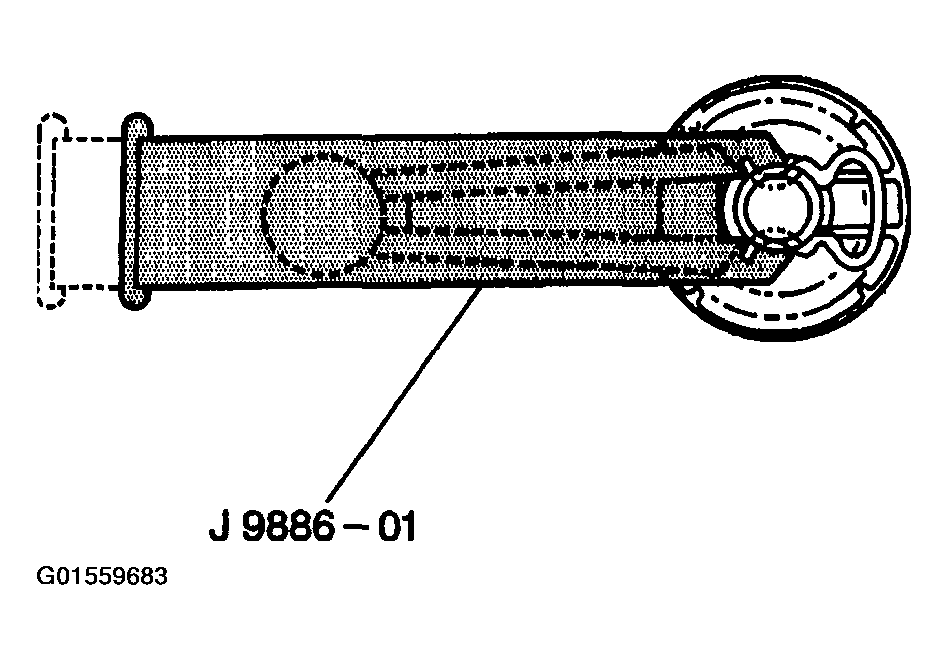

    Fig 1: Identifying Door Handle Clip Remover
    G01559683Courtesy of GENERAL MOTORS CORP.
