Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (CHEVROLET)  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  4. Remove the front door reveal molding by the window rear channel.
  5. Remove the bolt from the rear channel (2).
  6. Lift up the rear channel to disengage the top clip.
  7. Remove the window rear channel (1) from the front door.

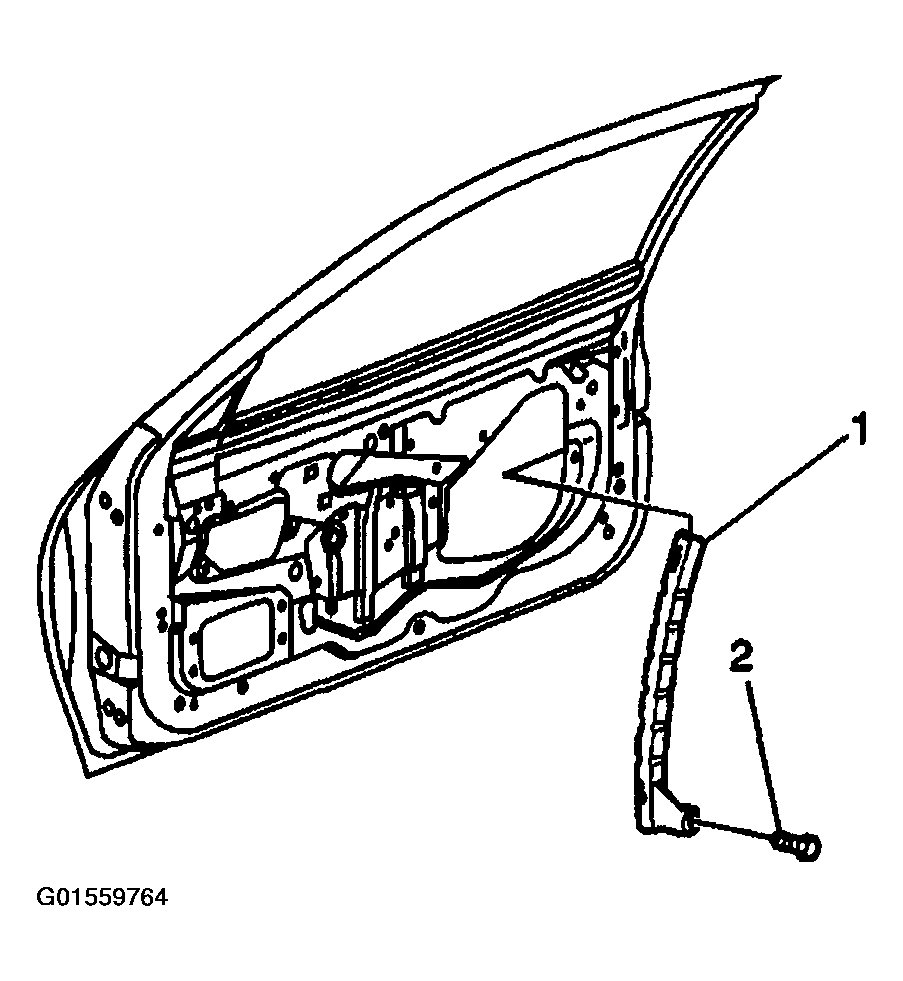

    Fig 1: Removing Window Rear Channel From Front Door
    G01559764Courtesy of GENERAL MOTORS CORP.
