Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear run channel (1) in the front door.
  2. Lift up the rear channel to install the top clip.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the window rear channel bolt (2).

    Tighten

    Tighten the lower window channel bolt 6 N.m (53 lb.in).

  4. Install the reveal molding.
  5. Install the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  6. Install the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  7. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (CHEVROLET)  .

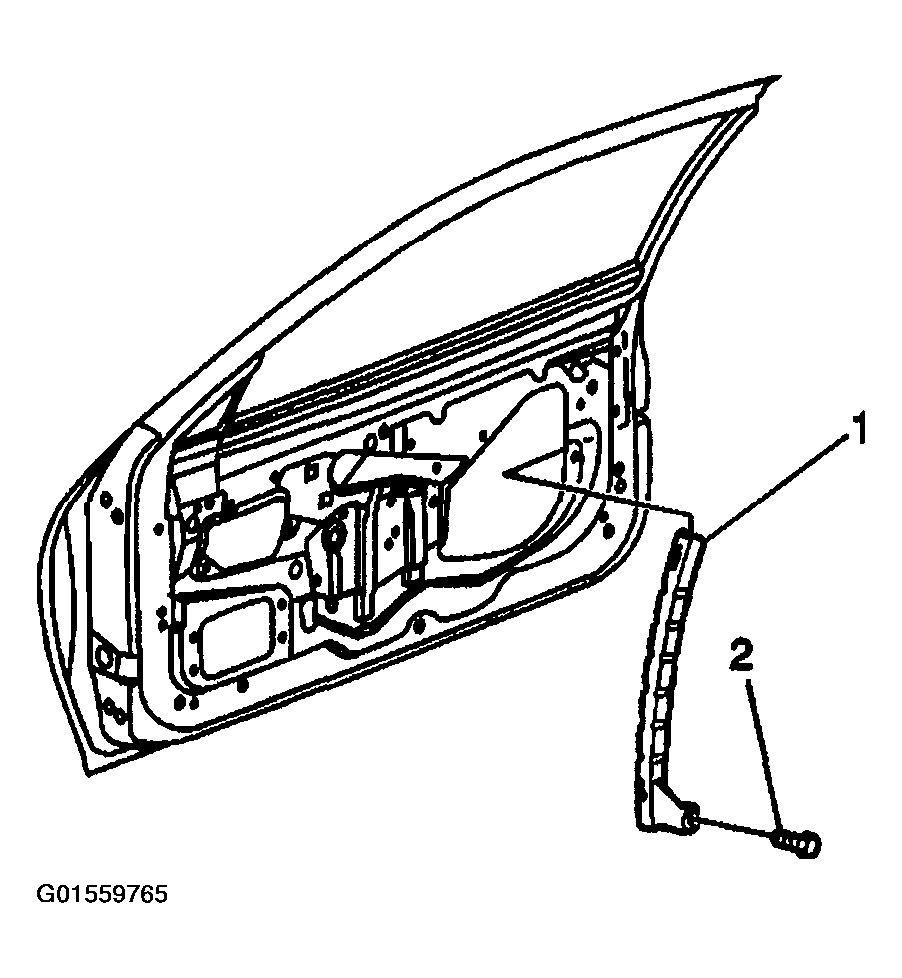

    Fig 1: Installing Window Rear Run Channel In Front Door
    G01559765Courtesy of GENERAL MOTORS CORP.
