Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the carpet retainer from the vehicle. Refer to CARPET RETAINER REPLACEMENT (SEDAN) or CARPET RETAINER REPLACEMENT (COUPE) .
  2. Remove the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  in Interior Trim.
  3. Remove the center pillar trim. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.
  4. Pull the front door opening weatherstrip (1) loose and remove it from the vehicle.

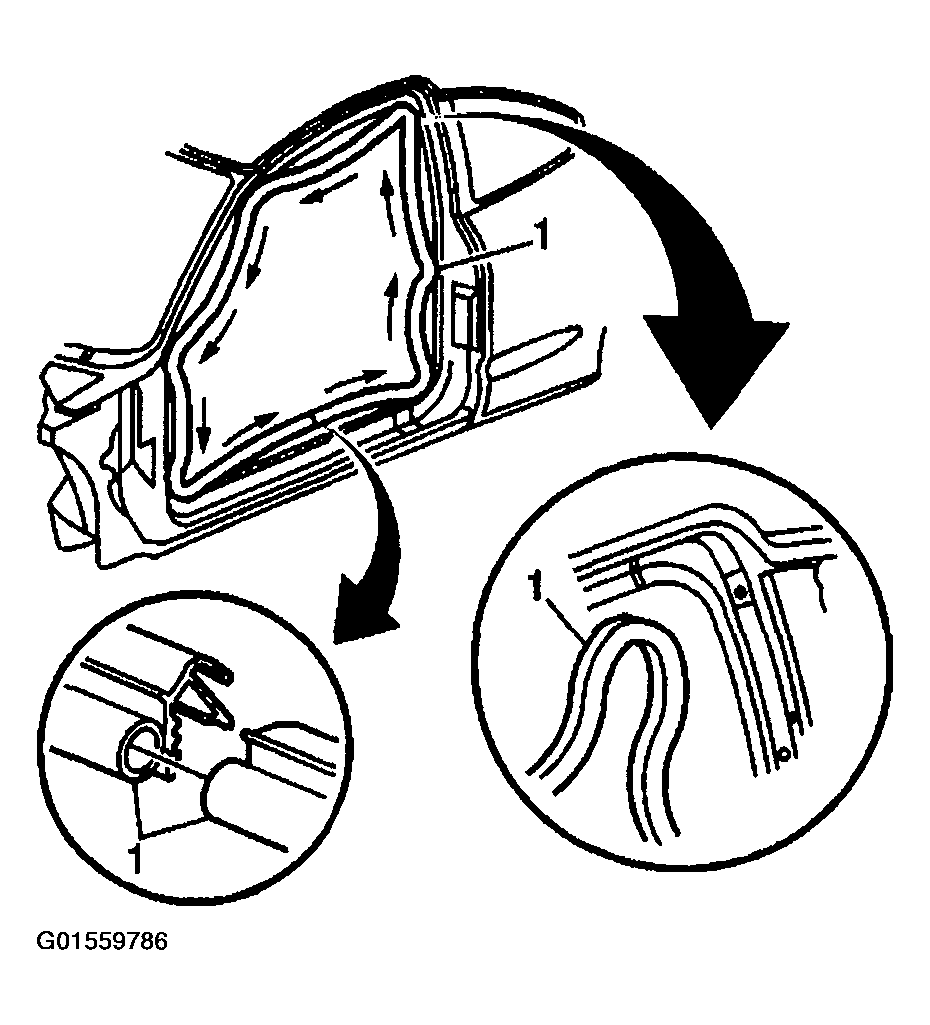

    Fig 1: Removing Front Door Opening Weatherstrip From Front Door Pinchweld
    G01559786Courtesy of GENERAL MOTORS CORP.
