Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power window switch, if equipped. Refer to POWER WINDOW SWITCH REPLACEMENT  .
  2. Remove the window manual regulator handle, if equipped. Refer to WINDOW REGULATOR HANDLE REPLACEMENT - DOOR  .
  3. Remove the armrest screw.
  4. Using J 38778  and starting at the rear door bottom, disengage the trim panel retainers.
  5. Remove the trim panel from the inner door by lifting up on the panel to disengage the inner belt weatherstrip.

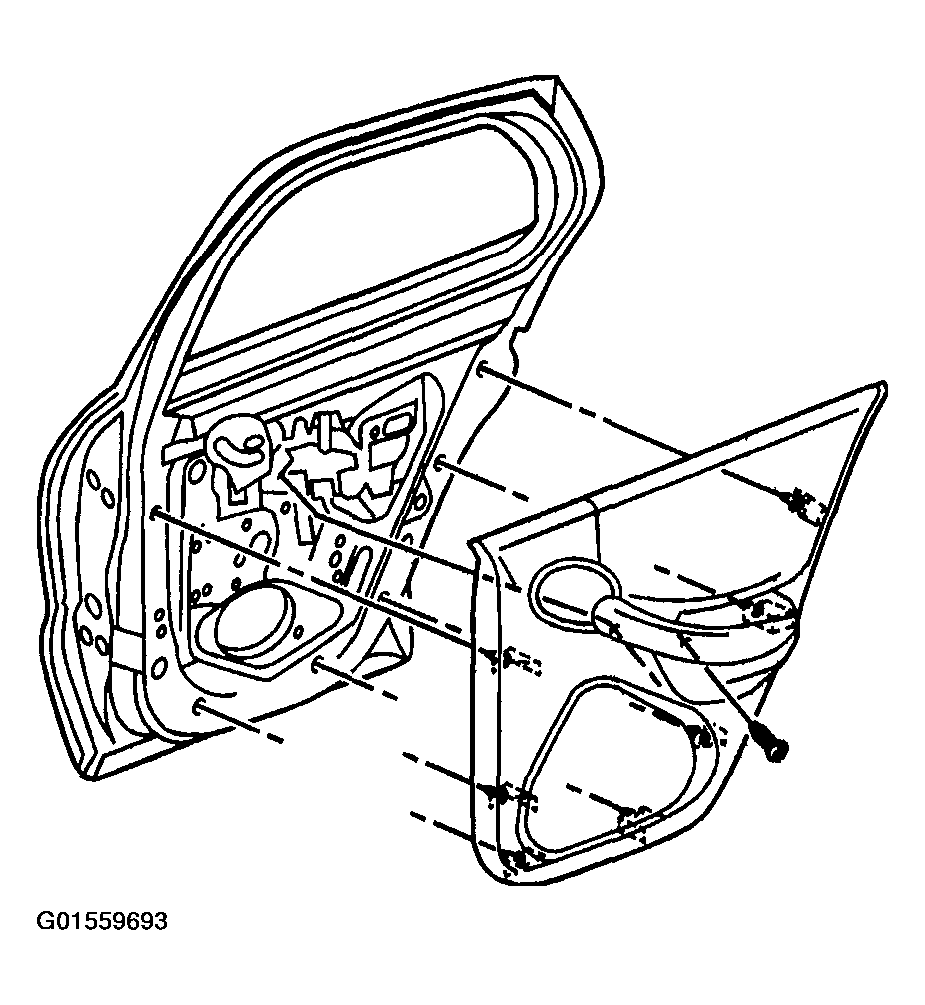

    Fig 1: Removing Trim Panel From Inner Door - Side Rear Door (Pontiac)
    G01559693Courtesy of GENERAL MOTORS CORP.
