Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power window switch, if equipped. Refer to POWER WINDOW SWITCH REPLACEMENT  .
  2. Remove the window manual regulator handle, if equipped. Refer to WINDOW REGULATOR HANDLE REPLACEMENT - DOOR  .
  3. Remove the armrest screws (1).
  4. Remove the lower trim panel screws.
  5. Using J 38778  and starting at the door bottom, disengage the door trim panel (2) retainers.
  6. Remove the door trim panel (2) from the door by lifting up on the panel to disengage the inner belt weatherstrip.

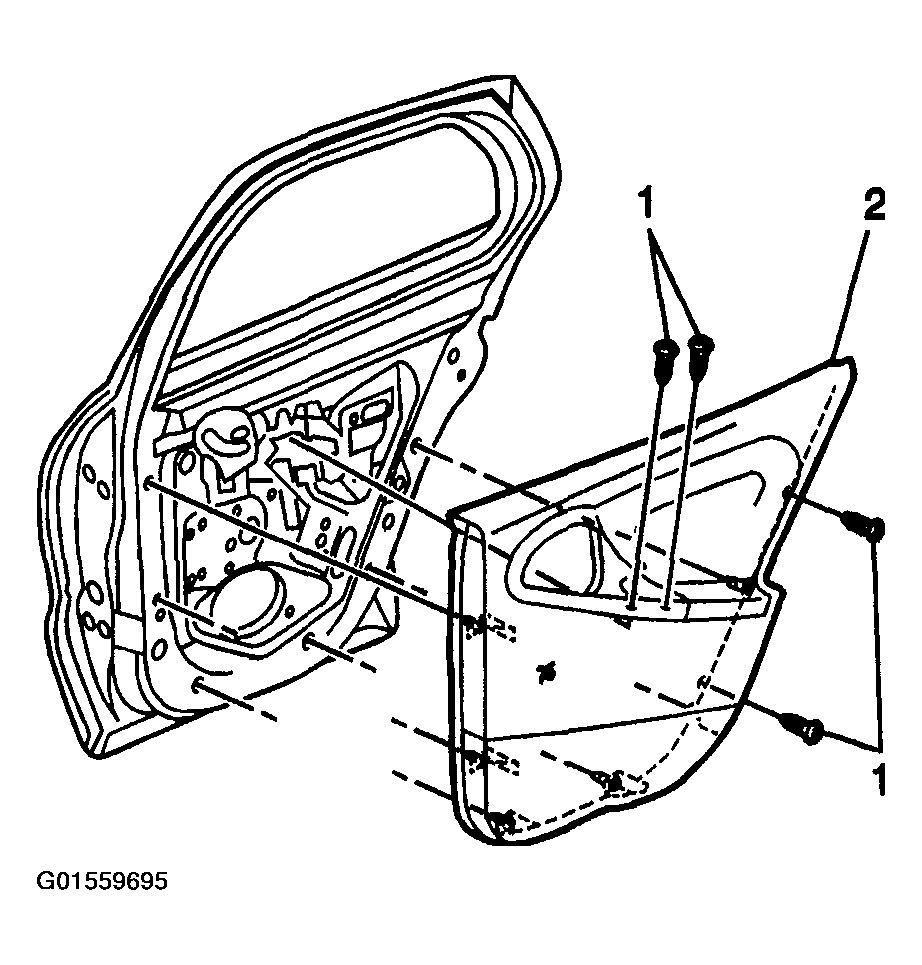

    Fig 1: Removing Door Trim Panel From Door - Side Rear Door (Chevrolet)
    G01559695Courtesy of GENERAL MOTORS CORP.
