Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the striker bolts (2).
  2. Remove the washer (4).
  3. Remove the spacer (3).
  4. Remove the striker (1).

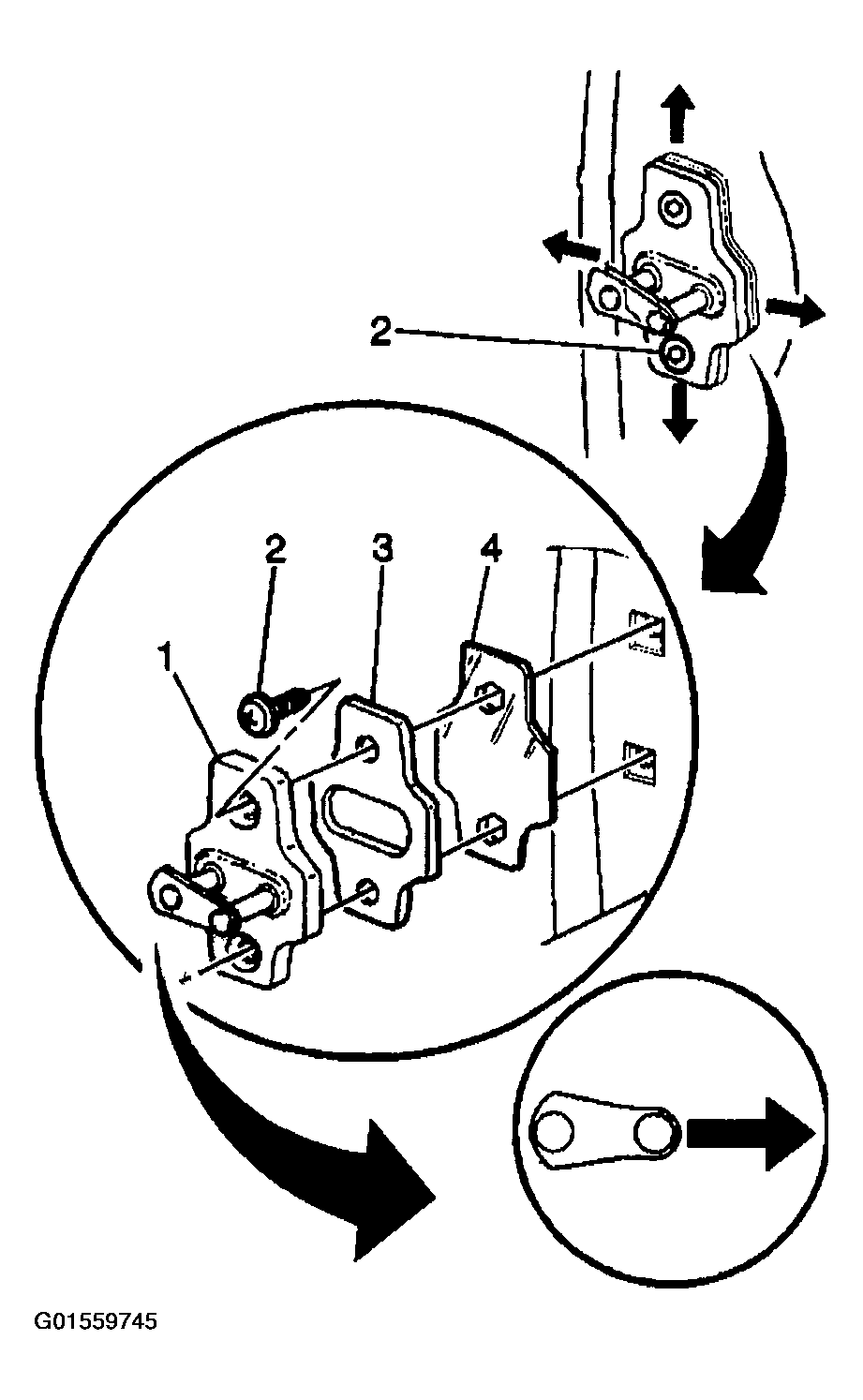

    Fig 1: Removing Striker
    G01559745Courtesy of GENERAL MOTORS CORP.
