Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to disengage the push-pin retainers (1).
  2. Remove the center column auxiliary weatherstrip from the vehicle.

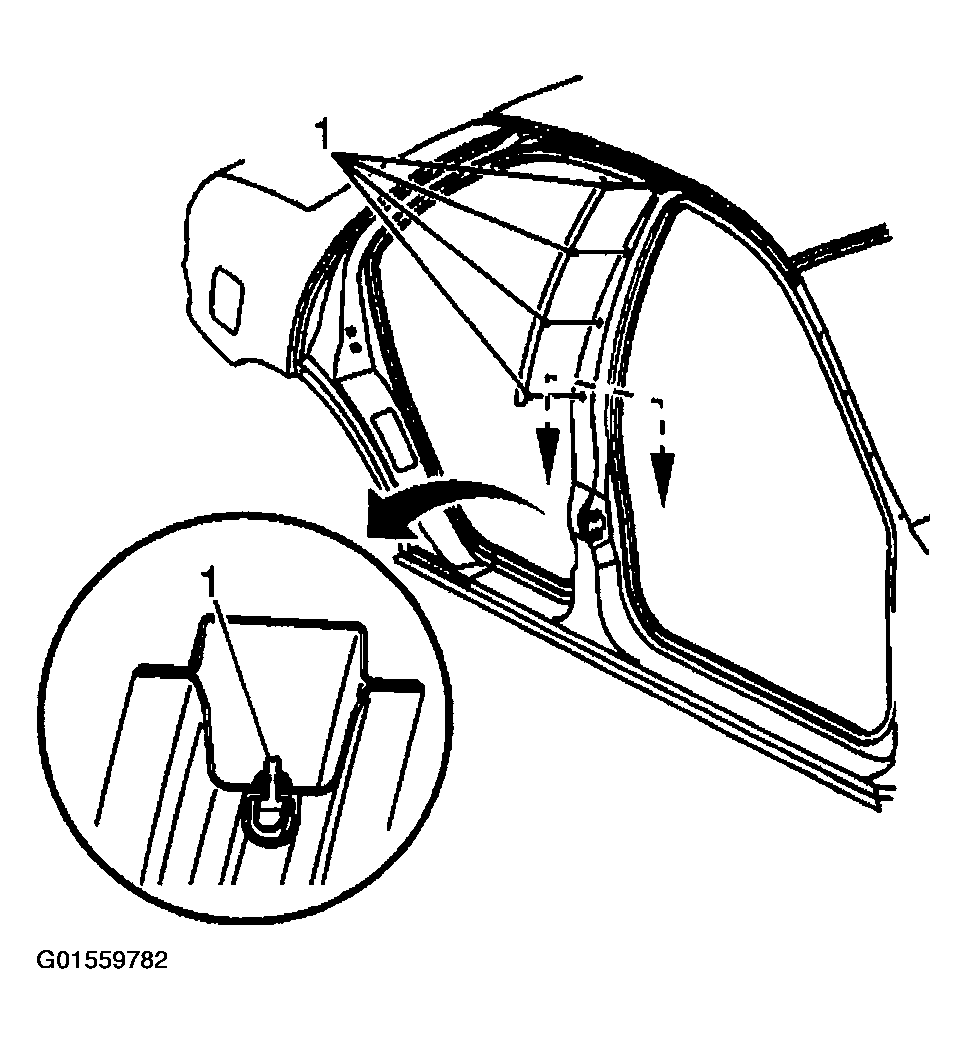

    Fig 1: Removing Center Column Auxiliary Weatherstrip From Vehicle
    G01559782Courtesy of GENERAL MOTORS CORP.
