Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the door window to the full DOWN position.
  2. Remove the screw (1) from the door sealing strip.
  3. Remove the door sealing strip (2).

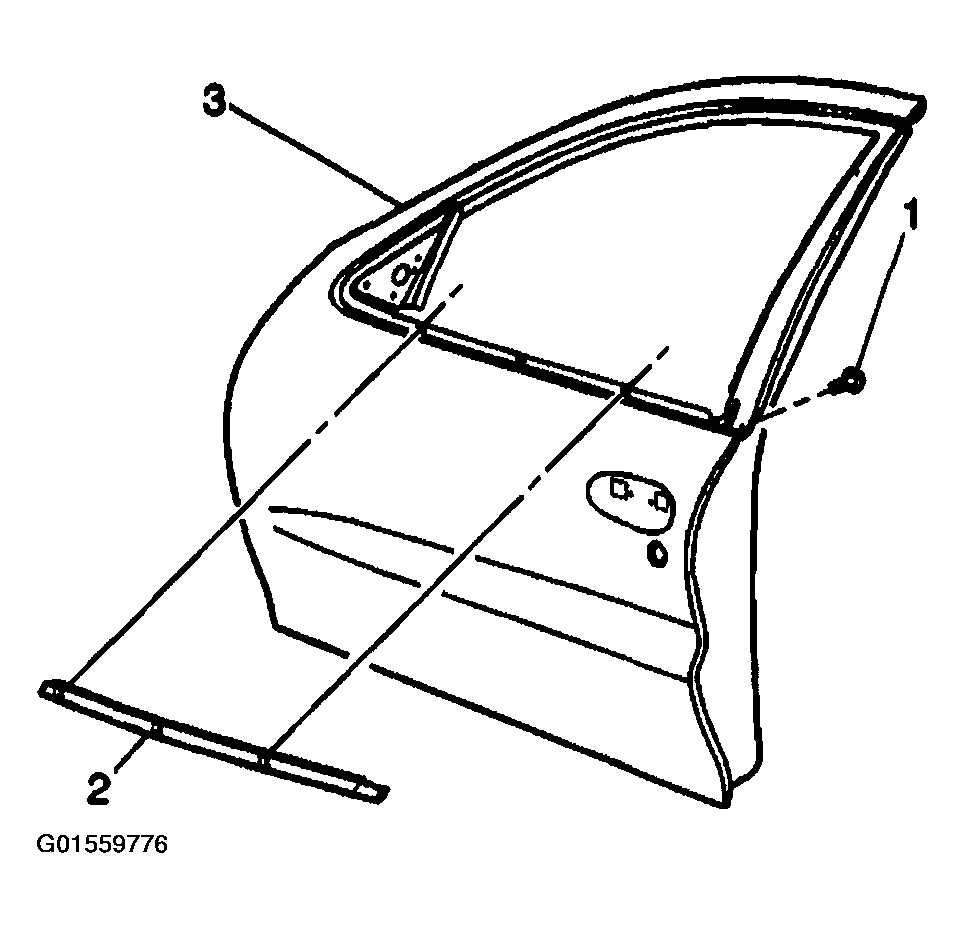

    Fig 1: Removing Front Door Sealing Strip
    G01559776Courtesy of GENERAL MOTORS CORP.
