Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the roof weatherstrip back from the front auxiliary weatherstrip.
  2. Remove the bolts (3) from the auxiliary weatherstrip.
  3. Using a flat-bladed tool, remove the push-in retainer (2).
  4. Remove the auxiliary weatherstrip (1) from the front column.

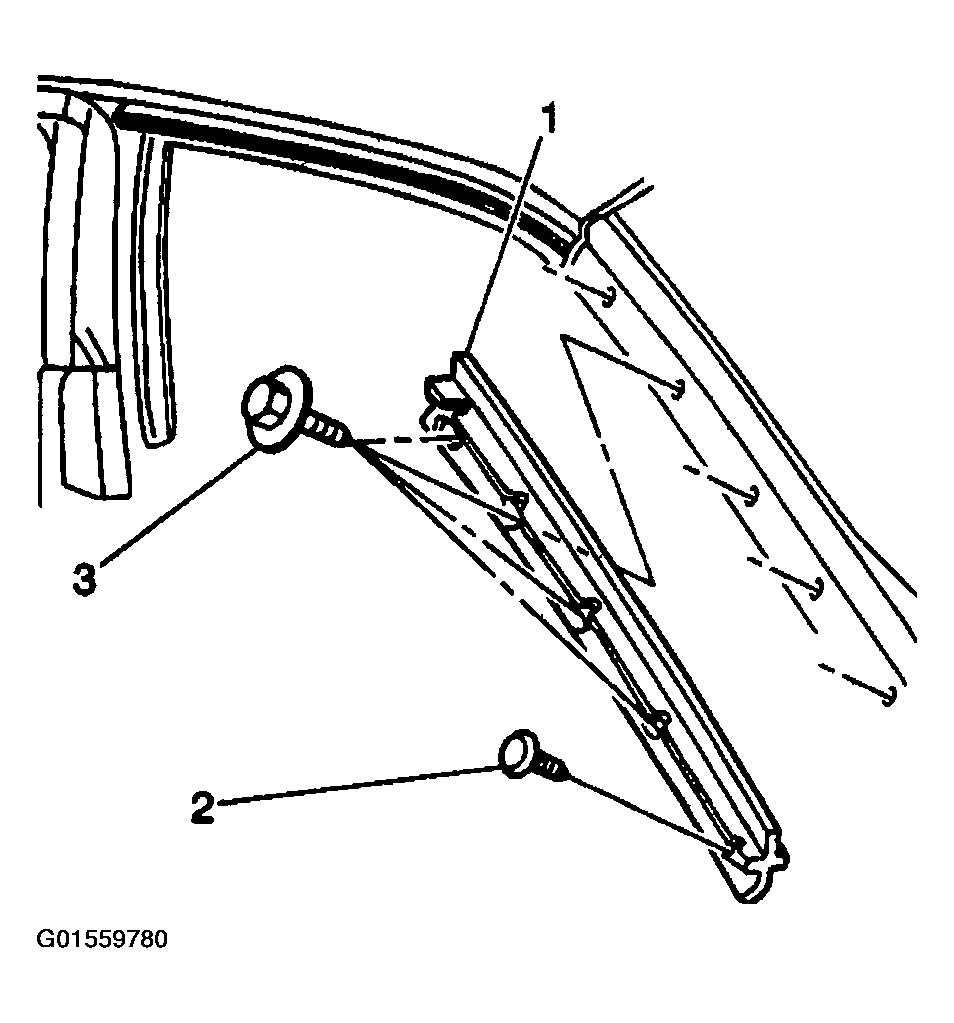

    Fig 1: Removing Auxiliary Weatherstrip From Front Column
    G01559780Courtesy of GENERAL MOTORS CORP.
