Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (CHEVROLET)  .
  2. Disconnect the electrical connector for the power mirror switch (2).
  3. Loosen the set screw (3) enough to remove the switch (2).
  4. Remove the switch (2) from the upper extension trim panel (1).

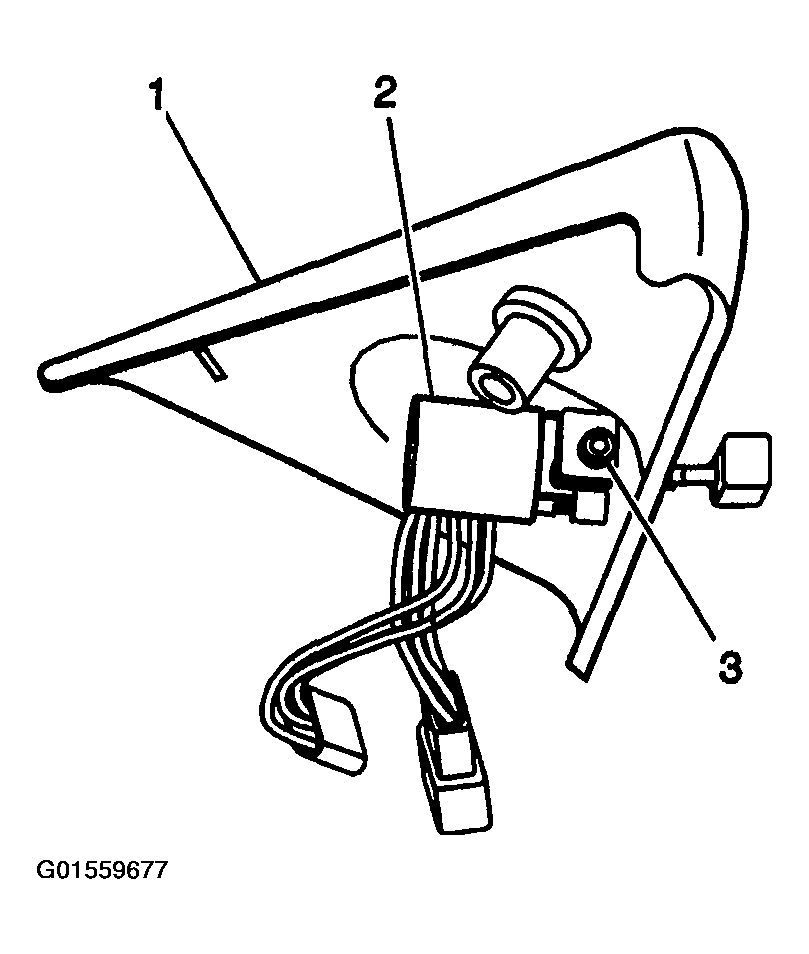

    Fig 1: Locating Set Screw In Power Mirror
    G01559677Courtesy of GENERAL MOTORS CORP.
